Sump pump Pro grade 1HP

1HP 115v
Model Number

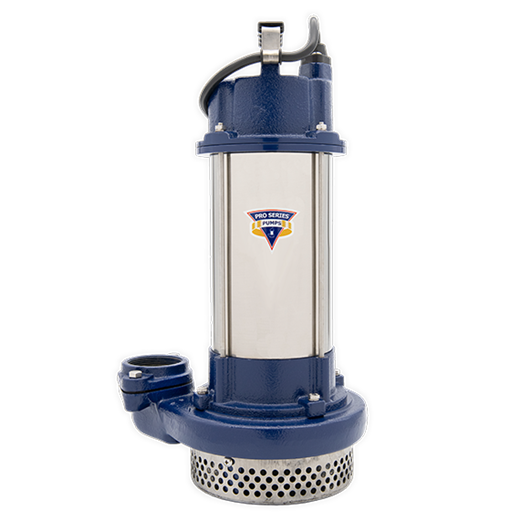

Pro Series S3100 Sump pump Pro grade 1HP

Pro Series S3100

PHCC Sump pump Pro grade 1HP. Industrial grade pumps for the residential market.

Pro Series submersible pumps. Sump pump, submersible dewatering pump, effluent pump. Not all sump pumps are created equal!

  • Continuous duty construction
  • Cast iron and stainless steel housing with primed and double baked paint
  • 5520GPH @ 10FT
  • Stainless steel shaft
  • Upper and lower ball bearings
  • Dual carbon ceramic seals
  • Dynamically balanced cast iron impeller
  • Stainless steel fasteners
  • Removable strainer
  • 20' cord length
  • Energy efficient - Pumps 4gal / watt hour (G/Wh)
More Information
Model Number S3100
Series Pro Series submersible pumps
Max Flow (GPM.) 96
Max Flow GPH 5760
TDH Maximum (Ft) 52
TDH Maximum (PSI) 22
Horse Power (HP) 1
Horsepower (IE .5, 1, 1.5, 20) 1.0000
Outlet Connection Type FNPT
Outlet (In.) 2
Wetted Materials 416SS, Cast Iron
Elastomers / O-ring Buna-Nitrile
Voltage (V) 115
Voltage (Range) 110-120
Phase (Ø) Single (1)
Motor Frequency 60
Motor Amps (A) 11.5
Motor Hermetically Sealed
Speed (RPM.) 3450
Max Operating Temperature (F) 104
Viscosity Milk 3.20 cp 40.00 ssu
Shaft 416SS
Mechanical Seal Face Carbon-ceramic
Mechanical Seal Type Double
Motor Bearings Ball
Approvals CSA
Impeller Material Cast Iron, semi-open
Cord Length (Ft.) 20
Duty Continuous
Weight (Lbs) 46.000000
Warranty (YRS.) 4
GPM Of Water At 15 Feet Of Head 82
GPM Of Water At 30 Feet Of Head 60
GPM Of Water At 40 Feet Of Head 35

Supporting Docs

Supporting Docs
(Size: 1.04 MB) Extension: pdf
