Deluxe Float Controller
-
Model Number:
VSC2
-
Product Name:Deluxe Float Controller
-
Manufacturer:
115v 3/4HP Vertical Deluxe
Model Number
VSC2
15% Off
Special Price
$108.80
Regular Price
$128.00
Pro Series VSC2

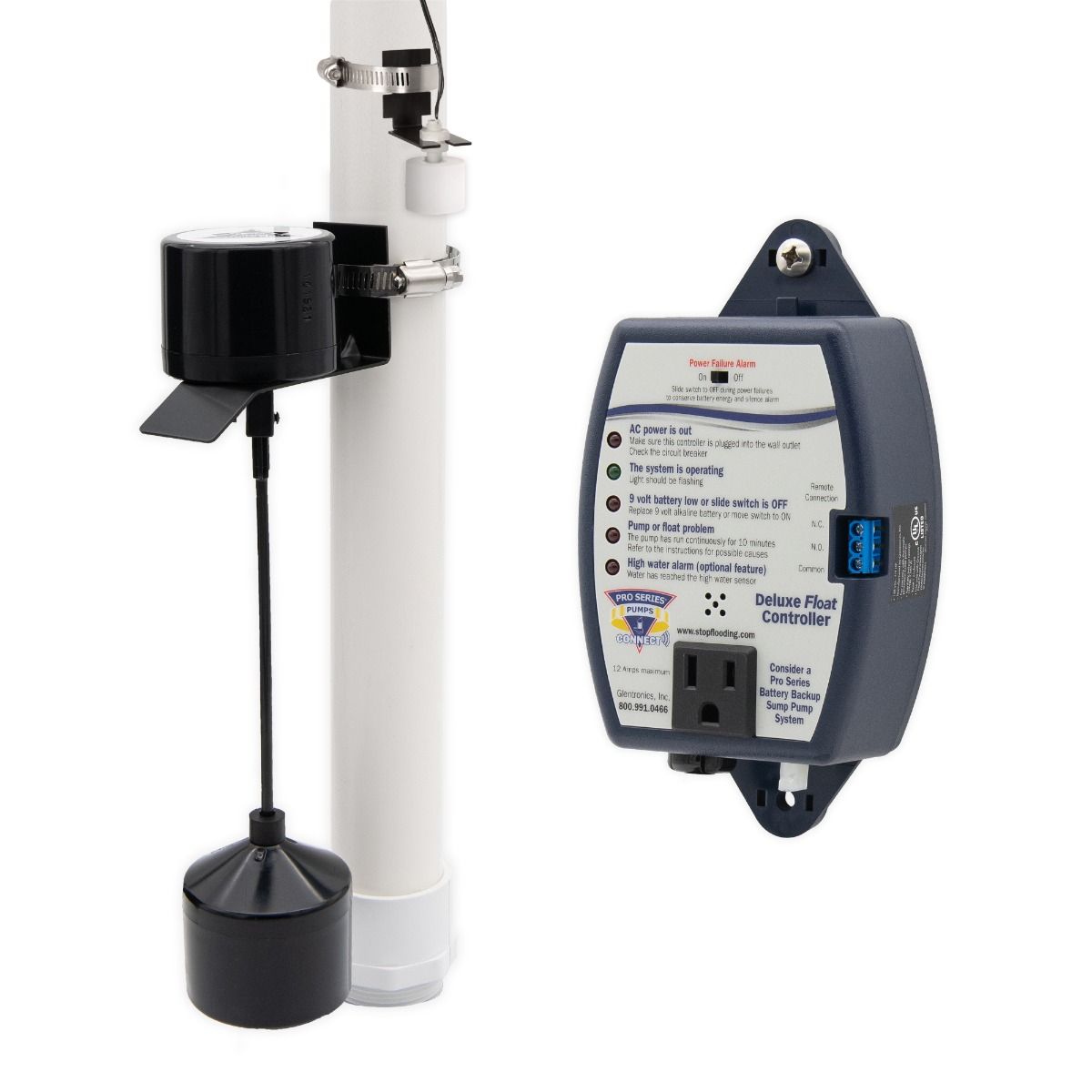

Deluxe Controller: Deluxe Dual Float Controller and vertical mechanical float switch. VSC2
The Controller monitors pump and power conditions, and sounds an alarm when a problem is detected. The warning signals are described below. In addition,it begins the pumping cycle when the float rises, and runs the pump an additional 10 seconds after the float returns to its original position. Pump run time is adjustable 5-45 seconds. Warning signals When a warning alarm sounds, a light will appear on the front panel of the controller indicating which problem has been detected. Optional WiFi module.
- Adjustable run time from 5-45 seconds after the float drops
- Activates pump weekly to exercise, extending pump life
- System operating light
- 9v battery ALARM backup power
- Universal mounting tabs
- 4 Foot Power cord, 10FT sensor cord
- Sounds an alarm and alerts when
- AC power has failed
- Pump or Float problem detected
- 9v Battery is low or side switch is off 9-volt battery low or slide switch is OFF- indicates when it's time to replace the battery or reminds you to move the slide switch back to the ON position
- Includes remote terminals to connect to a home security system, auto dialer or other device
Vertical Float switch Features
- Can be used in clear water and sewage applications
- Mechanical float on rod
- The internal switching mechanism has sealed gold contacts for reliable high cycle operation
- Float switch can be unplugged from the controller for easy installation
- Mounts to discharge pipe with included stainless steel hose clamp
- Activation level is adjustable
New PS-WS High Water Alarm to meet the plumbing code in certain areas, where a high water alarm is required. NEW Wi-Fi and Home Automation modules that send remote notifications
VFC2 Alarms (LED, Beep) and remote notification terminals (NO/C/NC) active when: AC Power out, pump ran for 10 minutes continuously and the 9Volt Alarm backup battery is low. A flashing green light to indicate the controller is active. The latest model has a plug on the bottom to allow the water sensor float (sold separately) to be plugged in to provide an instant audible, LED and remote notification based simply on water level. 49ax06
Model Number | VSC2 |
---|---|
Wetted Materials | PolyPro |
Elastomers / O-ring | Buna-Nitrile |
Voltage (V) | 115 |
Voltage (Range) | 110-120 |
Phase (Ø) | Single (1) |
Motor Frequency | 60 |
Motor Amps (A) | 13.0000 |
Max Operating Temperature (F) | 105 |
Viscosity | Water 1.00 cp 31.00 ssu |
Length (In.) | 3.5000 |
Other | 4FT power cord w/plug so the controller can be mounted to the side of the outlet box or onto the conduit. |
Approvals | cUL |
Cord Length (Ft.) | 10 |
Country of Manufacture | United States |
Weight (Lbs) | 2.000000 |
Warranty (YRS.) | 3 |
>
