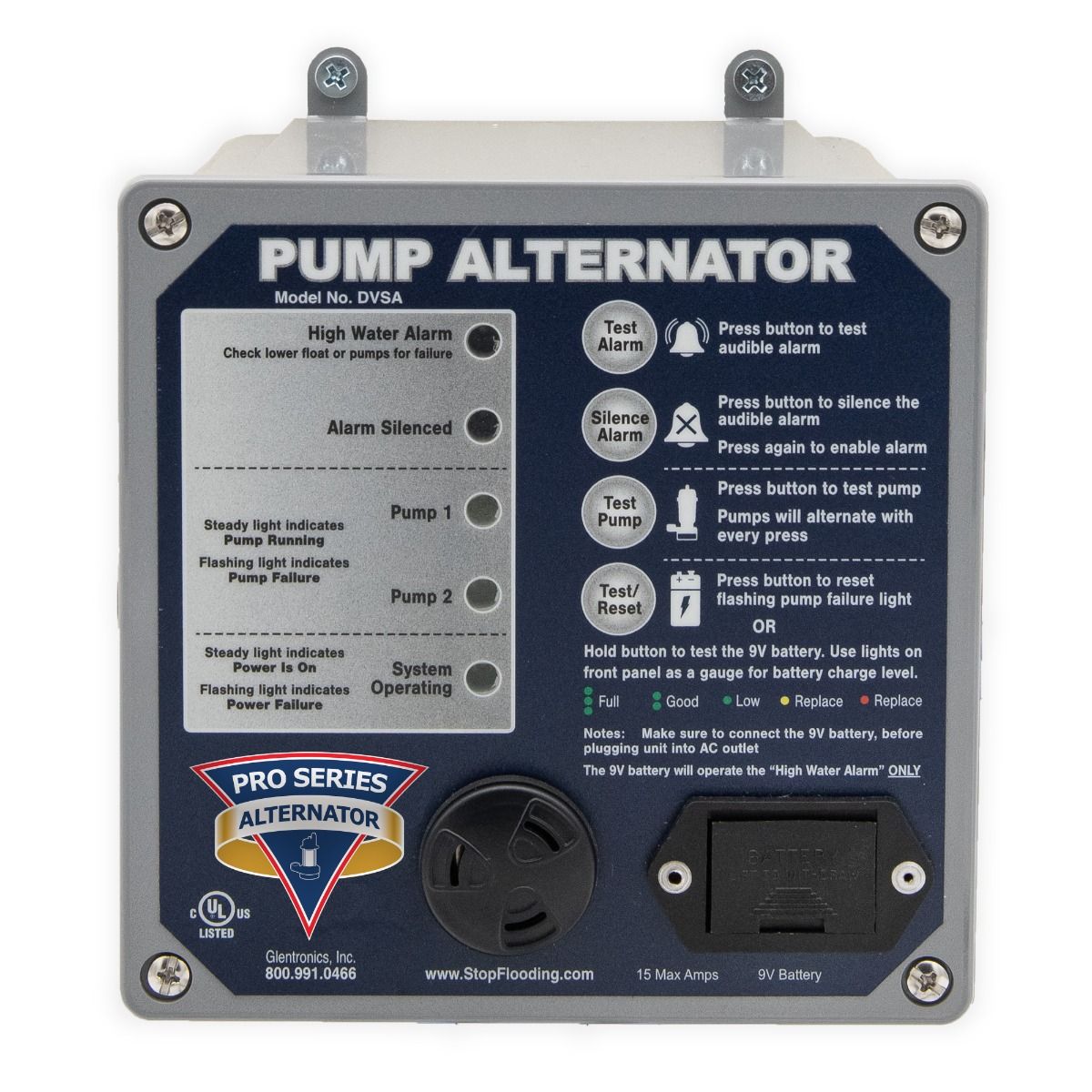

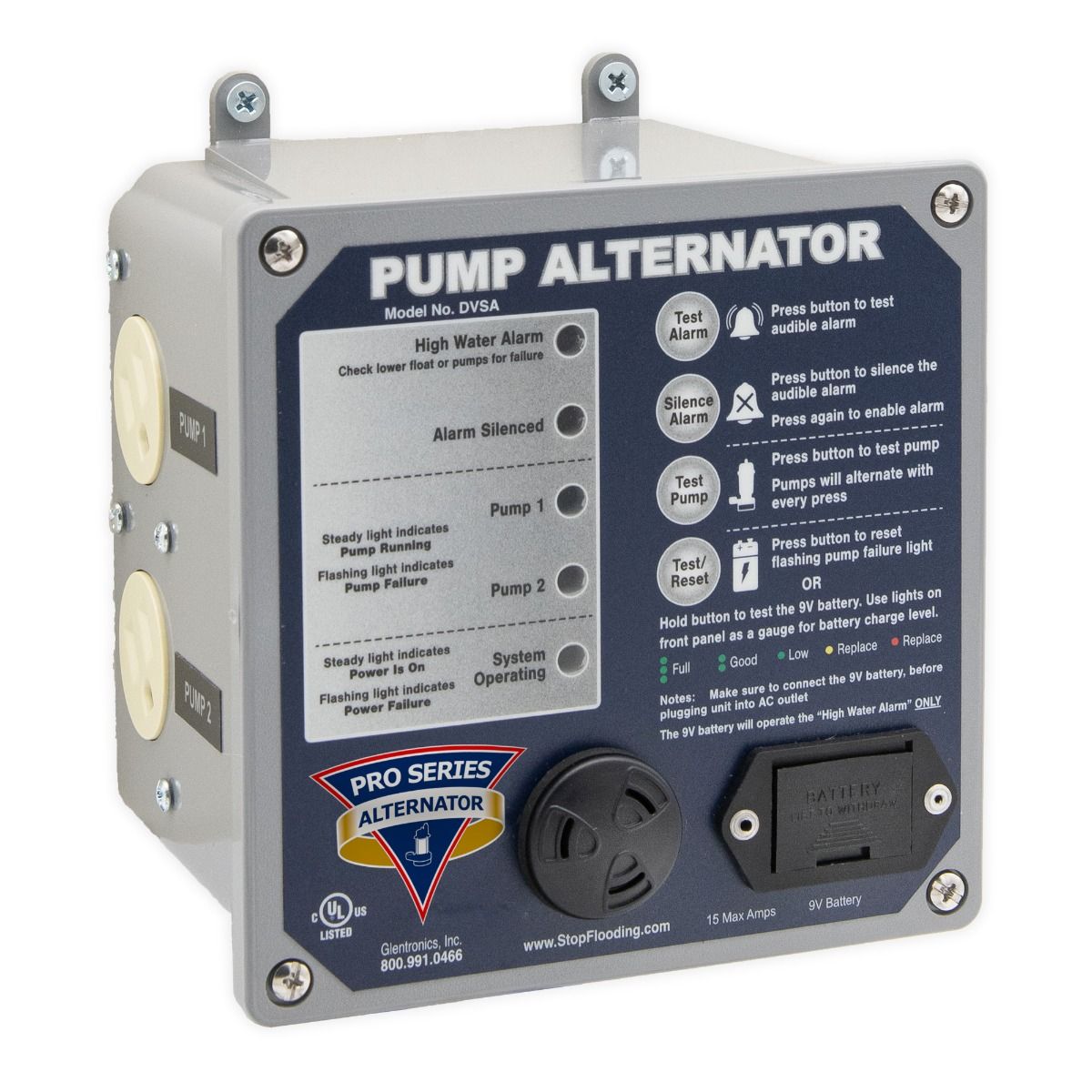

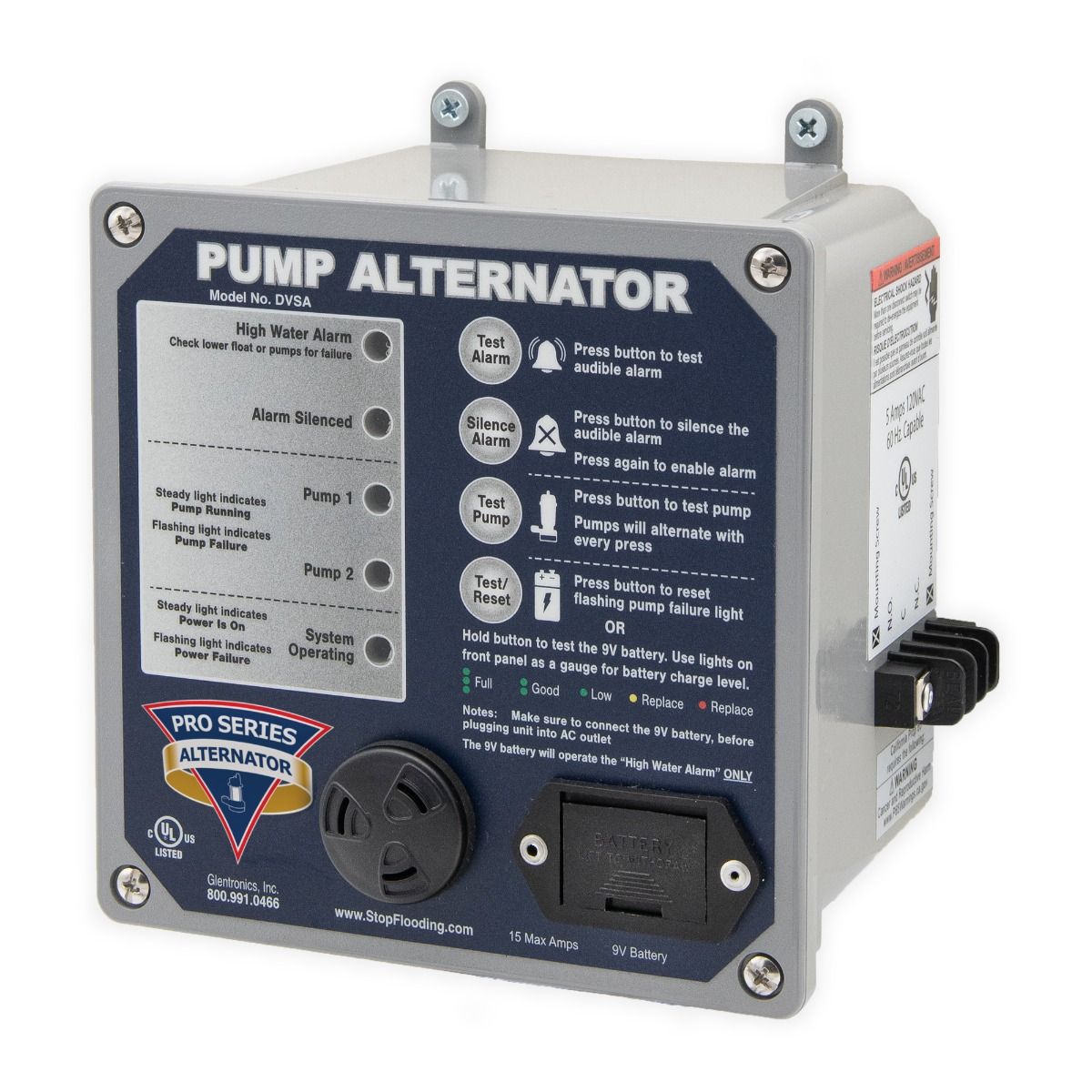

Pump Alternator Control and Alarm System

  • Model Number:


  • Product Name:
    Pump Alternator Control and Alarm System
  • Manufacturer:
Duplex Pump Dual controller
Model Number
Pro Series DVSA Pump Alternator Control and Alarm System

Pro Series DVSA

The Pump Alternator Control and Alarm System is ideal for those wishing to maintain two primary pumps in the same pit. DVSA alternator lengthens the life of both pumps by alternating usage, running one pump at a time. If your pit water conditions could require both pumps to operate during a high water emergency then consider the DVSA-DF duplex panel. However you will need over size piping or duplex discharge piping to handle the excessive flow in the event both pumps are required on. Includes two Vertical float switches which can be mounted at any level. Alternator works with Glentronics WiFi module, for remote notification of problems.


  • If one pump fails the other pump will take over and an audible alarm will sound
  • Alerts to pump failure, high water and system operation
  • provides alternating operation of two (duplex) 120 volt pumps, submersible or other
  • Remote terminal (NC/NO) allows the unit to connect to any security system, auto dialer or other device
  • Includes 2 vertical float switches and can accommodate any 2 of the pro series PHCC Pro Series primary pumps (Floats plug into the bottom of the alternator)
  • Vertical level switches can be unplugged from the Alternator for easy installation
  • Angled receptacles to accept a standard or right angled pump plugs
  • 9V battery back-up for "High Water Alarm" alarm
  • 15 Amps max.
  • Pump run test button

LED indicators:

  • High water alarm
  • Alarm Silenced
  • Pump 1 run
  • Pump 2 run
  • System Operating

Touch Pad Buttons:

  • Test Alarm
  • Silence Alarm
  • Test Pump
  • Test / Reset

Will not work with pumps that have integrally wire float switches. 49ax01

More Information
Model Number DVSA
part number dvsa
Wetted Materials Noryl-PPO
Voltage (V) 115
Voltage (Range) 110-120
Phase (Ø) Single (1)
Motor Frequency 60
Motor Amps (A) 13.0000
Max Operating Temperature (F) 105
Approvals cUL
Cord Length (Ft.) 4
Country of Manufacture United States
Weight (Lbs) 2.000000
Warranty (YRS.) 3
