Sump pump only Pro grade CI/SS

Manufacturer:

Pro Series Pumps
Series (35 Models):

Pro Series submersible pumps
Product Name:

Sump pump only Pro grade CI/SS
Model Number:

S3050

1/2HP No switch 3YR Warr.

Model Number

S3050

Specifications

$368.00

Email to a Friend Price Match

Skip to the end of the images gallery

Skip to the beginning of the images gallery

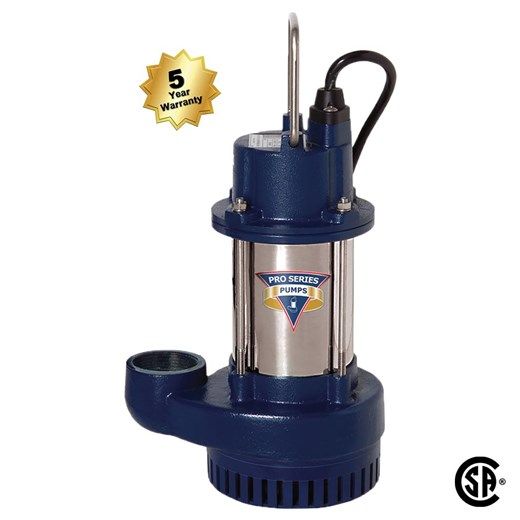

Pro Series S3050

Industrial grade pumps for the residential market.

Pro Series submersible pumps. Sump pump, submersible dewatering pump. Not all sump pumps are created equal! Optional dual float switch shown in picture. Dim. 13.39"H x 8.46"D

Features

Continuous duty construction
Cast iron and stainless steel housing with primed and double baked paint
3900GPH @ 10FT
Stainless steel shaft
Upper and lower ball bearings
Dual carbon ceramic seals
Dynamically balanced cast iron impeller
Stainless steel fasteners
Removable strainer
20' cord length
Insulation class E
Energy efficient - Pumps 7.6gal / watt hour (G/Wh)

Until now there have been three varieties of float switches: vertical, tethered and pressure. Unfortunately, all three of these switches are subject to various forms of failure. Now a float has been created with redundant switches to eliminate these problems. The Dual Float has, not one, but two floats mounted within a protective cage. Should one float fail to operate, the second float is available and ready to activate the pump. The protective cage prevents debris or other wires from interfering with movement of the floats.

More Information
Model Number	S3050
Series	Pro Series submersible pumps
Max Flow (GPM.)	56
Max Flow GPH	3360
TDH Maximum (Ft)	33
TDH Maximum (PSI)	14
Horse Power (HP)	1/2
Horsepower (IE .5, 1, 1.5, 20)	0.5000
Outlet Connection Type	FNPT
Outlet (In.)	2
Wetted Materials	416SS, Cast Iron
Elastomers / O-ring	Buna-Nitrile
Voltage (V)	115
Voltage (Range)	110-120
Phase (Ø)	Single (1)
Motor Frequency	60
Motor	Hermetically Sealed
Speed (RPM.)	3450
Self Priming	Yes
Max Operating Temperature (F)	104
Viscosity	Milk 3.20 cp 40.00 ssu
Shaft	416SS
Mechanical Seal	No
Mechanical Seal Face	Carbon-ceramic
Mechanical Seal Type	Double
Motor Bearings	Ball
Other	Optional: The Dual Float switch: offers float switch redundancy, a primary float and a backup prevents debris or wires from interfering with float operation by encasing them within a protective cage adjusts to any activation level provides ultimate security and peace of mind includes a hose clamp to secure the float switch to the discharge pipe 3-year warranties when the pumps are used in intermittent applications. Dual Float Level Switch
Approvals	CSA
Impeller Material	Cast Iron, semi-open
Cord Length (Ft.)	20
Duty	Continuous
Drain	Yes
Port Rotation	Yes
Weight (Lbs)	25.000000
Warranty (YRS.)	4
