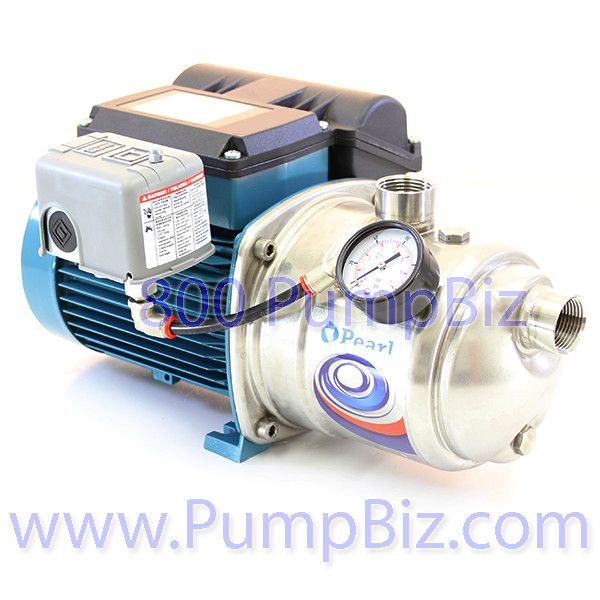

3/4 HP JSC Shallow Well Pump

3/4 HP JSC07F Shallow Well Pump Features

An exclusive diffuser jet design with flow control device provides for compact construction, fast self-priming capability and low noise.

Reliable with new design features, the JSC is more robust and forgiving when temporary abnormal operating conditions may exist.

The JSC Pearl is smaller than conventional pumps of a similar type, allowing for installation in restricted spaces and providing for easier retrofit applications.

Fast air evacuation reduces the risk of air-pockets developing at the mechanical seal preventing the danger of seal failure due to a lack of flushing and cooling.

The new diffuser and flow control device guide the fluid from the impeller into the central part of the pump casing, reducing turbulence and velocity, with effective use of the surrounding liquid in dampening the noise of flow.

APPLICATIONS

• For drawing water out of a well.
• For lifting water containing air or other gases.
• For increasing water pressure from flooded suction applications.
• As pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure).
• For garden use.
• For clean liquids or slightly dirty surface water.
• For washing with a jet of water.

OPERATING CONDITIONS

• Liquid temperature: 32 °F to 95 °F.
• Ambient temperature up to 104 °F.
• Maximum permissible pressure in the pump casing: 116 psi.
• Continuous duty.
