Sump pump
-
Model Number:
SP33A
-
Product Name:Sump pump
-
Manufacturer:
-
Series (15 Models):
Model Number
SP33A
$453.75

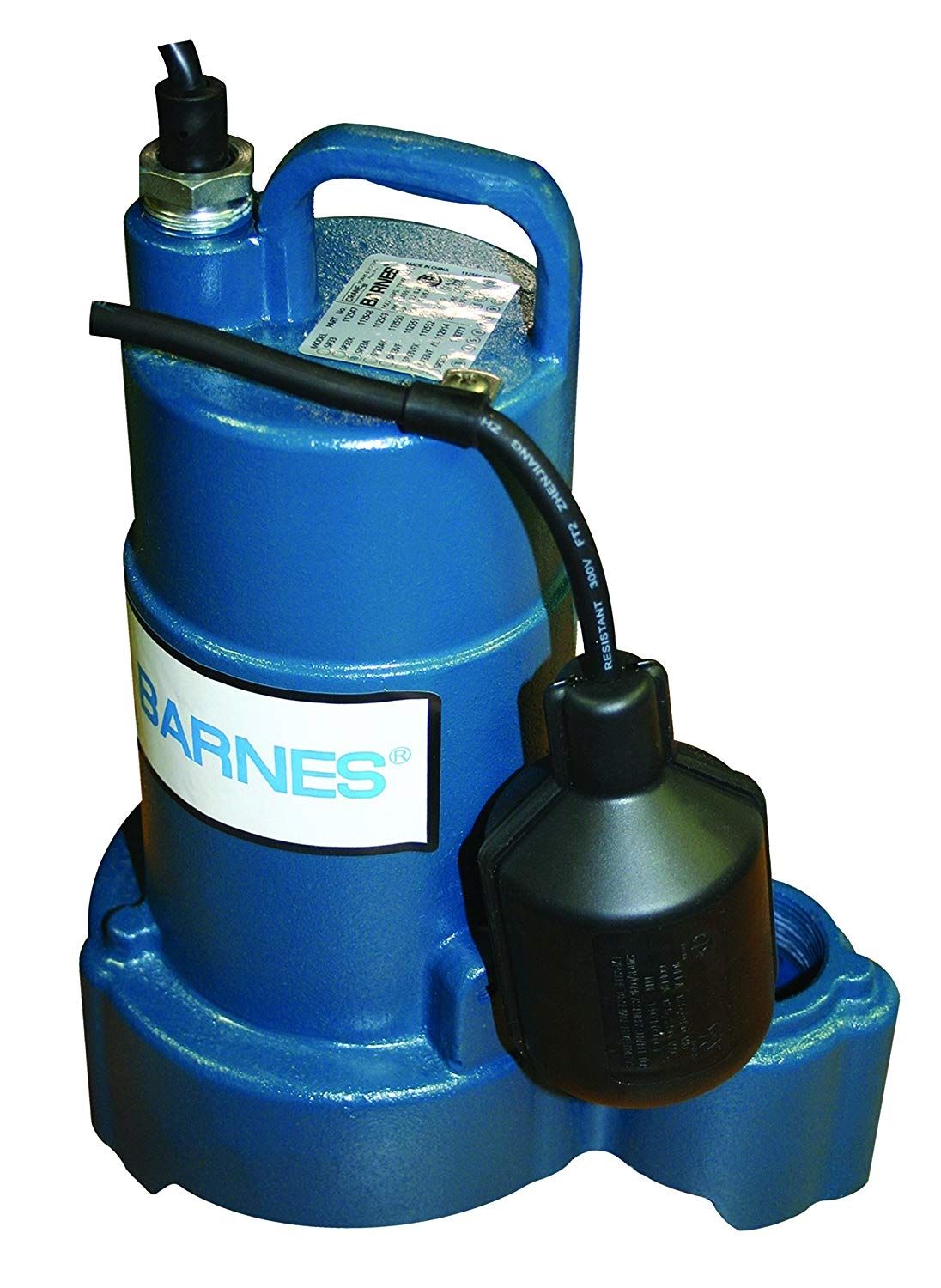

Barnes SP33A
Barnes SP33 sump pump are robustly designed for long operational
life and dependable service. Barnes sump pump / effluent pump are
further enhanced by a stainless steel shaft. Barnes SP sump
pumps save time and replacement costs because they are
interchangeable with competing sump pump models. SP33A has a wide
angle, mechanical float switch.
Barnes SP33 and SP50 sump pumps feature:
- Maximum flow rate to 66 gpm (SP50) and 50 gpm (SP33)
- A shut-off head of 30 feet
- Permanent split capacitor motor for reliable, high performance, longer motor life, greater starting torque and lower amp draw
- Stainless steel hardware and shaft
Design Features:
- Piggy-back mounted switch
- Adjustable vertical or swing floats
- Compact design/li>
Additional pump features:
- Cast-iron vortex impeller
- 1/2" spherical solids capability
- Upper and lower ball bearings
- Automatic thermal overload protection
- 12-month limited warranty
| Model Number | SP33A |
|---|---|
| Series | Sump Pump |
| Max Flow (GPM.) | 50 |
| Max Flow GPH | 3000 |
| TDH Maximum (Ft) | 30 |
| TDH Maximum (PSI) | 13 |
| Horse Power (HP) | 1/3 |
| Horsepower (IE .5, 1, 1.5, 20) | 0.3300 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 1.5 |
| Wetted Materials | Cast Iron |
| Elastomers / O-ring | Buna-Nitrile |
| Voltage (V) | 115 |
| Voltage (Range) | 110-120 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 60 |
| Motor | Hermetically Sealed |
| Speed (RPM.) | 3450 |
| Self Priming | ---- |
| Max Operating Temperature (F) | 104 |
| Viscosity | Milk 3.20 cp 40.00 ssu |
| Shaft | 416SS |
| Length (In.) | 11.700000 |
| Mechanical Seal | Yes |
| Mechanical Seal Face | SiC |
| Mechanical Seal Type | Single |
| Other | cord length 10ft, pump diameter 8.5in CSA 108/UL 778 approved Pump strainer: Thermoplastic Minimum Sump DIA: 18" Pumping differential: 9 in. |
| Drain | No |
| Port Rotation | No |
| Weight (Lbs) | 30.000000 |
| Warranty (YRS.) | 1 |
>
