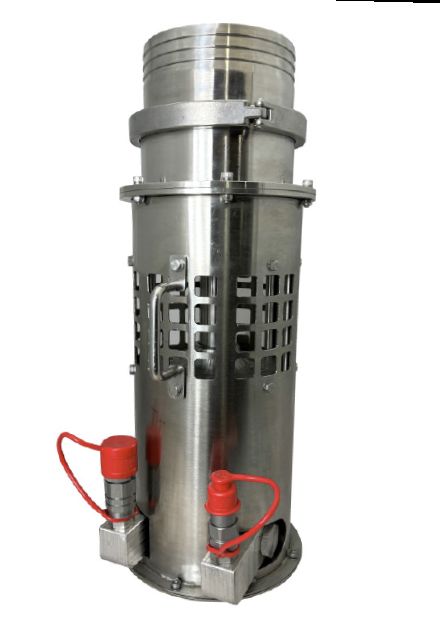

6" Hydraulic trash pump

Hydraulic TP60 compact submersible trash pump, efficient way to move large volumes of liquids that can contain sand, dirt and gravel very quickly. This submersible centrifugal design requires no priming and can run dry all day without damage. Direct drive requires no maintenance as all moving parts are self lubricated with passing hydraulic fluid.

Pump can handle the removal of water containing solids up to 30% and 3/8" solids. It is perfect in the pumping sites of water, sand slurries, gravel and sludge on job sites.

This submersible centrifugal design requires no priming and can run dry all day without damage. Direct drive requires no maintenance as all moving parts are self lubricated with passing hydraulic fluid. A durable steel bowl and ductile iron impeller and aluminum Wear Plate are very durable and capable of moving liquids containing up to 30% solids. If you are pumping oily sludge, septic systems, muddy trenches or even clean water this a pump for you. The TP60 is fitted with flush face couplers that threads directly into SAE ports, No NPT hydraulic joints to weep. The TP60 Trash Pump comes with a 3” male NPT output port fitted to a 6” hose barb fitting standard.

Hydraulic flow 7-9gpm up to 2000psi

Max. hydraulic pressure 2000psi

Max. hydraulic BACK pressure 250psi

Hydraulic motor must return into a open / non-pressurized reservoir open circuit. Back pressure on the discharge / return side of the hydraulic will damage shaft seal. Skid steer need to be aware of this.
