3" Self-Priming Trash Pump Honda Engine

Manufacturer:

AMT Pumps
Series (20 Models):

Trash Pumps Gas Diesel Engine Powered
Product Name:

3" Self-Priming Trash Pump Honda Engine
Model Number:

3S9XHR

8HP Honda 3"

Model Number

3S9XHR

Specifications

Be the first to review this product

20% Off Special Price $2,268.00 Regular Price $2,835.00

Email to a Friend Price Match

Skip to the end of the images gallery

Skip to the beginning of the images gallery

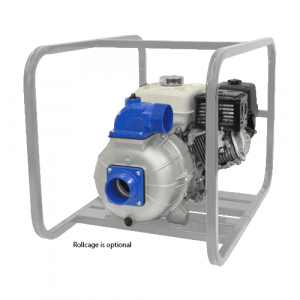

3" Engine Driven Self-Priming Trash Pump

3" Engine Driven Self-Priming Trash Pump dimensions

AMT IPT Portable High Volume, Self-priming Centrifugal Trash pumps include easy clean-out with replaceable cast iron impeller and volute that resist abrasion/wear. All pumps feature aluminum housing, cast iron wear-parts, built-in check valve, suction strainer and heavy duty steel roll frame. Heavy duty cast iron flanges with male NPT threads that rotates in 90° increments. Easy access fill plug on discharge port. Standard Features

Cast Aluminum with Internal Cast Iron Wear-parts for Durability
Silicon Carbide/FKM® Mechanical Seal
EPDM/EPR O-Rings Standard with Optional FKM®
3 or 4 Removable Male NPT Suction and Discharge Ports
Discharge Rotates in 90° Increments
Engine :Honda GX270
Maximum Solids Handling up to 2½
Maximum Flow up to 530 GPM
Maximum Head up to 112 Ft.
Self-Priming to 26 Ft.
Wheel Kit Optional
Cast Iron Impeller
Silicon Carbide Mechanical Seal with Graphite Impregnated Seat and FKM® Elastomers

Cast Iron Impeller
Heavy Duty Steel Roll Frame and Strainer Included
Built-in Check Valve is Removable / Replaceable
Cast Iron Suction / Discharge Ports
Choice of Honda, Briggs and Stratton Vanguard
Gasoline or Yanmar Diesel Engines
Vibration Dampening Feet
Maximum Temperature 180° F
EPDM / EPR O-rings Standard with Optional FKM®
Optional FKM Check Valve Available
Optional Wheel Kit Available
QSP – Quick Ship Pumps

AMT, IPT, OTS pumps Div. of Gorman-Rupp

More Information
Model Number	3S9XHR
part number	3S9XHR-999-
Series	Trash Pumps Gas Diesel Engine Powered
Max Flow (GPM.)	370
Max Flow GPH	22200
TDH Maximum (Ft)	110
Horse Power (HP)	8
Horsepower (IE .5, 1, 1.5, 20)	8.0000
Inlet Connection Type	MNPT
inlet size	3"
Inlet (In.)	3
Outlet Connection Type	MNPT
Outlet (In.)	3
Wetted Materials	Aluminum
Elastomers / O-ring	EPDM
Motor	Gas Engine
Self Priming	Yes
Viscosity	SAE 10 oil 88.00 cp 500.00 ssu
Mechanical Seal	FKM
Mechanical Seal Face	SiC
Mechanical Seal Type	Single
Other	see curve B
Impeller Material	2 Vane open type. Ductil Iron
Drain	Yes
Port Rotation	Yes
Run Time (HR.)	2.5 hours
Fuel Tank Size	1.40/5.2 (Gal/Ltr.)
Country of Manufacture	United States
Weight (Lbs)	145.000000
Quick Ship	Yes
UPC	072684652447

Supporting Docs

3" Gas Self-Priming Trash Pump

(Size: 1.34 MB) Extension: pdf

California prop 65

AMT Pump Company is A Subsidiary of The Gorman-Rupp Company located in Mansfield, Ohio. AMT offers over 1000+ different standard model numbers of which 400+ are readily available and offered as QSP, Quick Ship Products. AMT manufactures and sells Industrial / Commercial pumps & accessories through authorized distributors.

Virtually every product AMT sells is engineered and designed by the company. Pump components are machined, assembled and tested at the Royersford, Pennsylvania facility.

AMT’s unique designs and patented products have made the company the industry leader for their high quality pumps.
