12vdc Bypass Pump 4GPM

  • Model Number:

    5516-2E6-63A

  • Product Name:
    12vdc Bypass Pump 4GPM
  • Manufacturer:
4GPM 60PSI 12VDC Buna QD Bypass
Model Number
5516-2E6-63A
$214.92

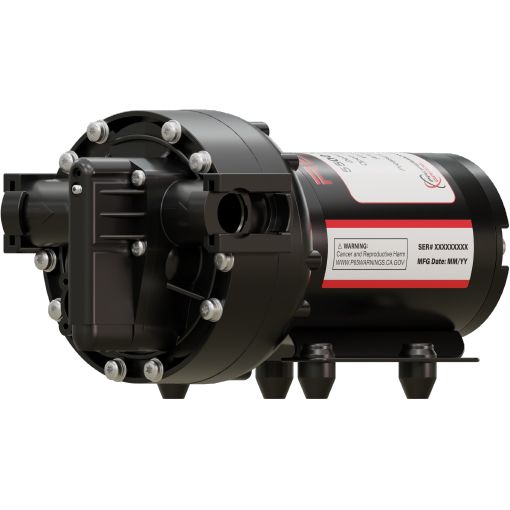

Remco 5516-2E6-63A 12vdc Bypass Pump 4GPM

Remco 5516-2E6-63A

12v diaphragm pump with by-pass. Quick Connect QD ports accept various size fittings. Industrial pump environments require precise engineering and quality components - the demand pump was designed with both. Bypass pumps operated as a positive displacement pump which has a pressure switch built in. When flow is open the pump runs, when the discharge is closed or restricted to much the psi switch senses the set point and recirculates automatically. Used in place of global strreetsweeper gs313915. For its size, it is one of the most powerful and productive diaphragm pumps you can buy, pumping up to 4.0 gallons per minute. If your specifications call for low noise, smooth operation, continuous operation and high capacity, it will meet the challenge. 1/2"FNPT threads can easily be supplied with garden hose adapters. Multi-fixture RV park model water installations. Other uses may include 120V AC pressurized water systems in cabins. This pump may be used for general fresh water transfer. Typical Applications heavy Duty Spraying high Pressure Cleaning, agricultural Spraying bulk Transfer starter Fertilizer de-icing fluid roof Cleaning *Santoprene- EPDM-based thermoplastic elastomer and is resistant to mild acids, some solvents and bases.

More Information
Model Number 5516-2E6-63A
Max Flow (GPM.) 4
Max Flow GPH 240
TDH Maximum (Ft) 138
TDH Maximum (PSI) 60
Inlet Connection Type Quick connect
Inlet (In.) 0.5
Outlet Connection Type Quick connect
Outlet (In.) 0.5
Wetted Materials PolyPro-GF
Elastomers / O-ring Buna-Nitrile
Diaphragm Buna-Nitrile
Voltage (V) 12DC
Voltage (Range) 12/24/36 VDC
Motor Amps (A) 16
Motor TENV
Self Priming Yes
Suction Lift (FT.) 14
Max Operating Temperature (F) 140
Viscosity SAE 10 oil 88.00 cp 500.00 ssu
Length (In.) 9.000000
Mechanical Seal No
Cord Size 14/2
Cord Length (Ft.) 4
Duty 20 minute duty cycle
Drain No
Port Rotation No
Country of Manufacture United States
Weight (Lbs) 10.000000
Warranty (YRS.) 1
>

Remco Professional Grade pumps.

Quality starts with our vision to produce fluid handling equipment that excels in performance and reliability, and surpasses the end user’s expectations.

Industry professionals choose Remco first because of our commitment to pro-level quality, engineering and customer service.

 The Remco PowerRV Series provides a solution for every RV fluid pumping challenge, from potable water to gray and black water.

Electric diaphragm demand pumps for fluid handling applications such as purification, light industrial, food and beverage, agricultural, and automotive.

Available in 12VDC, 24VDC, 115VAC
