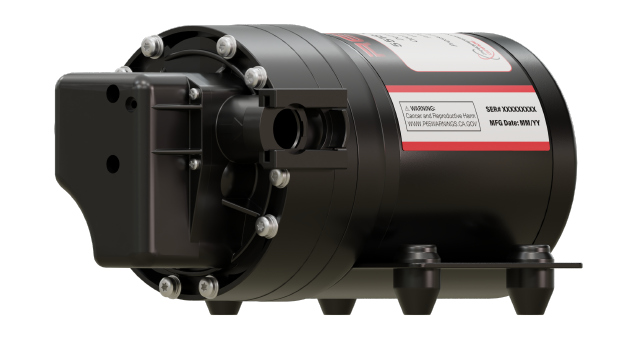

FatBoy Diaphragm Pump Bypass
-
Model Number:
5518-2I1-94A
-
Product Name:FatBoy Diaphragm Pump Bypass
-
Manufacturer:
7GPM 100PSI 12VDC FatBoy®
Model Number
5518-2I1-94A
$283.94
Remco 5518-2I1-94A
THE PROFLO FATBOY® PUMPS UP THE VOLUME WITH 7GPM.
FatBoy® Demanding industrial pump environments require precise engineering and quality components - the ProFlo FatBoy was designed with both. Liquid de-icing applications. To maximize the potential of all five diaphragm chambers, Remco matched it with a high torque, completely sealed motor. For size, it is one of the most powerful and productive diaphragm pumps you can buy, pumping up to 7.0 gallons per minute.
12vdc Demand pumps operated as a positive displacement pump which has a pressure Bypass built in. When flow is open the pump runs, when the discharge is closed or restricted to much the By-pass senses the set point and returns the fluid back to the suction. If your specifications call for low noise, smooth operation, continuous operation and high capacity, the Fat Boy will meet the challenge.12 VDC permanent magnet motor. Upgrade to pump on Brine Made Easy. Kilfrost anti-icing fluids. Typical Applications: Duty Sprayiny Pressure Cleaning agricultural Spraying Transfer Fertilizer,de-icing / Deicer fluid Cleaning/ Food Truck *Santoprene- FKM-based thermoplastic elastamer and is resistant to mild acids, some solvents and bases 7870-101E-SB
Uses such as snow melt liquid deicer deicing: Spraying salt brine, Potassium Acetate, Sodium Formate, 32% Calcium Chloride, FAA Compliant Ice Melters, Peladow , LS25, LS-25 CI, and a variety of Environmentally Friendly products SnowMelt. Prewetting / anti-icing, salt pre-wetting systems, salt brine, calcium & Mag chloride, potassium acetate. Also used in prairie dog, ground squirrel burrow hole filling with sand water mixture.
Possible Past Model Numbers: 5518-2J1-94A
| Model Number | 5518-2I1-94A |
|---|---|
| Max Flow (GPM.) | 7 |
| Max Flow GPH | 420 |
| TDH Maximum (Ft) | 277 |
| TDH Maximum (PSI) | 100 |
| Inlet Connection Type | Barb |
| Outlet Connection Type | Barb |
| Wetted Materials | PolyPro-GF |
| Elastomers / O-ring | FKM |
| Diaphragm | Santoprene |
| Voltage (V) | 12DC |
| Voltage (Range) | 12/24/36 VDC |
| Motor | TENV |
| Self Priming | Yes |
| Suction Lift (FT.) | 14 |
| Max Operating Temperature (F) | 140 |
| Viscosity | SAE 10 oil 88.00 cp 500.00 ssu |
| Mechanical Seal | No |
| Cord Size | 14/2 |
| Cord Length (Ft.) | 1 |
| Duty | Intermintent |
| Drain | No |
| Port Rotation | No |
| Country of Manufacture | United States |
| Weight (Lbs) | 11.000000 |
| Warranty (YRS.) | 1 |
>
Remco Professional Grade pumps.
Quality starts with our vision to produce fluid handling equipment that excels in performance and reliability, and surpasses the end user’s expectations.
Industry professionals choose Remco first because of our commitment to pro-level quality, engineering and customer service.
The Remco PowerRV Series provides a solution for every RV fluid pumping challenge, from potable water to gray and black water.
Electric diaphragm demand pumps for fluid handling applications such as purification, light industrial, food and beverage, agricultural, and automotive.
Available in 12VDC, 24VDC, 115VAC
