Submersible Shredder Sewage Pump
-
Model Number:
5764-95
-
Product Name:Submersible Shredder Sewage Pump
-
Manufacturer:
-
Series (13 Models):
230v/3 2HP
Model Number
5764-95
25% Off
Special Price
$1,849.55
Regular Price
$2,466.06

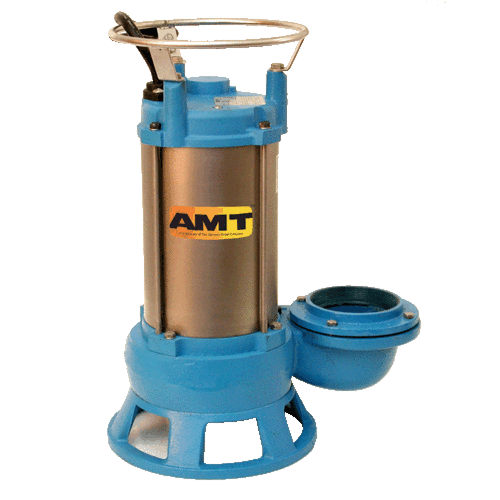

AMT 5764-95
AMT Submersible Shredder Sewage pumps feature an enhanced spiral shredder mechanism plate and carbide tipped impeller to prevent clogging and reduce maintenance when cutting through stringy, fibrous and sludge type waste. Applications include sewage pumping stations, septic tanks, sewage treatment plants, dirty water drainage, flood and emergency. Also ideal for grinder type solids reduction application. Motors are rated continuous duty and single phase models have thermal overload protection. AMT Submersible Shredder Sewage Pumps are reliable, cost effective, low maintenance and many are readily available "Off-the-shelf" for fast 24 hour shipment. For use with non-flammable liquids compatible with pump component materials.
- Cast Iron w/Stainless Steel Motor Housing
- Carbide Tipped Shredder Impellers
- Spiral Shredder Mechanism Plate Surface Hardened for Enhanced Cutting Ability
- Triplex Seal System: Double Mechanical Seals Plus Shaft Seal
- Silicon Carbide Lower Seal
- 115, 230 or 460 VAC @ 60 Hz Available
- Single or 3 Phase Available
- 2", 3" or 4" NPT
- 1 to 5 Horsepower
- Max Temperature 104ï½° F
- UL/CSA Listed
Series: Submersible Shredder Sewage
| Model Number | 5764-95 |
|---|---|
| part number | 5764-999-95 |
| Series | Submersible Shredder Sewage Pumps |
| Max Flow (GPM.) | 190 |
| Max Flow GPH | 11400 |
| TDH Maximum (Ft) | 44 |
| TDH Maximum (PSI) | 19 |
| Horse Power (HP) | 2 |
| Horsepower (IE .5, 1, 1.5, 20) | 2.0000 |
| Outlet (In.) | 1 |
| Wetted Materials | 304SS, Cast Iron |
| Elastomers / O-ring | Buna-Nitrile |
| Voltage (V) | 230 |
| Voltage (Range) | 220-240 |
| Motor Amps (A) | 2 |
| Motor | ODP |
| Self Priming | ---- |
| Suction Lift (FT.) | 5 |
| Max Operating Temperature (F) | 120 |
| Max Particle Size (In) | .2 |
| Viscosity | SAE 10 oil 88.00 cp 500.00 ssu |
| Mechanical Seal Face | SiC |
| Mechanical Seal Type | Double |
| Impeller Size (IN.) | b |
| Impeller Number (In.) | 3 |
| Other | amt pump |
| Approvals | CSA US |
| Rotation | cw |
| Cord Length (Ft.) | 18 |
| Drain | No |
| Country of Manufacture | United States |
| Weight (Lbs) | 80.000000 |
| Quick Ship | Yes |
| UPC | 072684651408 |
| Warranty (YRS.) | 1 |
| GPM Of Water At 30 Feet Of Head | 100 |
Supporting Docs
Supporting Docs
AMT Pump Company is A Subsidiary of The Gorman-Rupp Company located in Mansfield, Ohio. AMT offers over 1000+ different standard model numbers of which 400+ are readily available and offered as QSP, Quick Ship Products. AMT manufactures and sells Industrial / Commercial pumps & accessories through authorized distributors.
Virtually every product AMT sells is engineered and designed by the company. Pump components are machined, assembled and tested at the Royersford, Pennsylvania facility.
AMT’s unique designs and patented products have made the company the industry leader for their high quality pumps.
