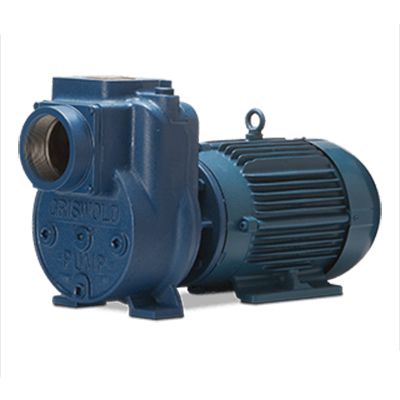

Self priming water pump 5HP
-
Model Number:
5HLS TEFC
-
Product Name:Self priming water pump 5HP
-
Manufacturer:
-
Series (20 Models):
5HP 230/1
Model Number
5HLS TEFC
$4,583.05
Griswold 5HLS TEFC
Self priming water pump 5HP.
Heavy duty work horse. Sturdy cast iron design with bronze impeller engineered for years of trouble free irrigation service.
The H Series is available in two versions:
- HL pumps: designed for lower flows
- HH pumps: designed for higher flows
H Series pumps are a unique line of self-priming centrifugal pumps used for a variety of water applications. The H Series performs where other self-priming pumps can’t and have been designed specifically to lift water up to 25 ft. With
- Pressures up to 110 psi
- Flows to 325 gpm
| Model Number | 5HLS TEFC |
|---|---|
| Series | H High Pressure Irrigation pumps Self-priming CI |
| Max Flow (GPM.) | 170 |
| Max Flow GPH | 10200 |
| TDH Maximum (Ft) | 170 |
| TDH Maximum (PSI) | 74 |
| Horse Power (HP) | 5 |
| Horsepower (IE .5, 1, 1.5, 20) | 5.0000 |
| Inlet Connection Type | FNPT |
| inlet size | 3" |
| Inlet (In.) | 3 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 2 |
| Wetted Materials | Bronze, Cast Iron |
| Elastomers / O-ring | Buna-Nitrile |
| Voltage (V) | 230 |
| Voltage (Range) | 220-240 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 60 |
| Motor | TEFC |
| Speed (RPM.) | 3450 |
| Motor Frame | 182/4JM |
| Self Priming | Yes |
| Suction Lift (FT.) | 25 |
| Max Operating Temperature (F) | 140 |
| Viscosity | Water 1.00 cp 31.00 ssu |
| Shaft | 304SS |
| Mechanical Seal Face | Carbon-ceramic |
| Mechanical Seal Type | Single |
| Impeller Size (IN.) | 6.430000 |
| Coupling | N |
| Other | Order a motor controller / starter seperately for a complete package. |
| Impeller Material | Bronze – closed |
| Cord Length (Ft.) | 0 |
| Drain | Yes |
| Port Rotation | Yes |
| Country of Manufacture | United States |
| Weight (Lbs) | 186.000000 |
| Warranty (YRS.) | 1 |
| GPM Of Water At 150 Feet Of Head | 75 |
