SEB2UL E5IC Fire Pump Kit
-
Model Number:
58-12BUL Deluxe Fire Kit
-
Product Name:SEB2UL E5IC Fire Pump Kit
-
Manufacturer:
-
Series (63 Models):
Pacer 58-12BUL Deluxe Fire Kit

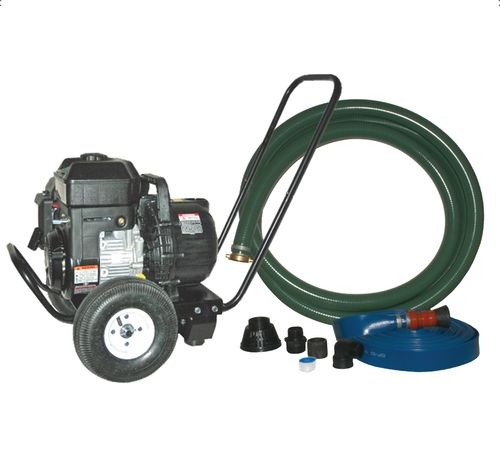

Fire Pump Wheeled Cart PACKAGE made by the World Leader PACER. SE2UL E950-214 Do not wait.....be ready.
Centrifugal Horizontal Mechanical Sealed Pump (Self-Priming) Pacer series S with 5.5hp gasoline engine. Great pump for removing water from basements, ditches, swimming pools or anywhere a large volume of water neeeds to be removed. Also good for irrigation, fire fighting, fish farms etc. INCLUDES SUCTION 2" X 20FT & DISCHARGE HOSE 1.5" x 100FT KIT AND Wheeled Cart.
Fire protection pump for rapid deployment with little effort. Use at home, farm or brush fires. Vertical range 40FT or 60GPM with adjustable nozzle. Structural plastic is light weight yet very strong for long life. Made in the USA. 4 cycle gasoline Engine is Briggs & Straton Intek brand. See Curve "B"
Other Manufactures Comparable Pumps: GORMAN-RUPP Fire Pumps,Darley Fire Pumps
Also see 2P5AR model.
| Model Number | 58-12BUL Deluxe Fire Kit |
|---|---|
| Series | Pacer S Self Priming Pump to 280gpm |
| Max Flow (GPM.) | 200 |
| Max Flow GPH | 12000 |
| TDH Maximum (Ft) | 130 |
| TDH Maximum (PSI) | 56 |
| Horse Power (HP) | 5 1/2 |
| Horsepower (IE .5, 1, 1.5, 20) | 5.5000 |
| Inlet Connection Type | FNPT |
| inlet size | 2in |
| Inlet (In.) | 2 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 2 |
| Wetted Materials | 304SS, Polyester |
| Elastomers / O-ring | EPDM |
| Motor | Gas Engine |
| Speed (RPM.) | 3450 |
| Self Priming | Yes |
| Suction Lift (FT.) | 25 |
| Max Operating Temperature (F) | 120 |
| Viscosity | Cream 16.50 cp 100.00 ssu |
| Shaft | 304SS |
| Mechanical Seal Face | Carbon-ceramic |
| Mechanical Seal Type | Single |
| Impeller Number (In.) | U |
| Other | Not for use with plating solutions. 3/4" motor shaft diameter. |
| Impeller Material | Plastic, semi-open |
| Drain | Yes |
| Port Rotation | No |
| Country of Manufacture | United States |
| Weight (Lbs) | 120.000000 |
| Warranty (YRS.) | 1 |
