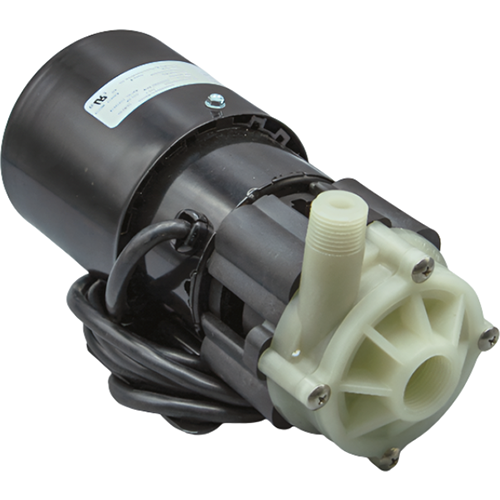

Magnetic Chemical Pump 1/15HP
-
Model Number:
AC-3CP-MD Mod
-
Product Name:Magnetic Chemical Pump 1/15HP
-
Manufacturer:
-
Series (6 Models):
115v Open Motor
Model Number
AC-3CP-MD Mod
$482.63
March AC-3CP-MD Mod
Magnetic pump, Simple, versatile and reliable, March Series 3 pumps feature an "orbital" magnetic drive and leak-proof design. Open Air Cooled motor, FPK oring and encapsulated magnet. They are rated up to 10GPM (33LPM) flow and for heads up to 20.5 ft (4.5m) (39 ft. [13m] when driven by an air motor). Applications include film processors, ice makers, laboratory and medical equipment, vapor degreasers and marine air conditioning systems. ie "MRI gradient chiller keeps cool water flowing through your magnets gradient coil."
Series 3 pumps are available in both Enclosed and epoxy clad submersible motor models with a variety of options in both materials of construction and inlet and discharge ports.
Series: Mag Drive Pump 1/20-1/8 HP 10 GPM
| Model Number | AC-3CP-MD Mod |
|---|---|
| part number | 0130-0018-01cm |
| Series | 3 March Mag Drive Pump 1/20-1/8hp 10gpm |
| Max Flow (GPM.) | 11 |
| Max Flow GPH | 660 |
| TDH Maximum (Ft) | 21 |
| TDH Maximum (PSI) | 9 |
| Horsepower (IE .5, 1, 1.5, 20) | 0.0600 |
| Inlet Connection Type | FNPT |
| inlet size | Less than 1in |
| Inlet (In.) | 0.75 |
| Outlet Connection Type | MNPT |
| Outlet (In.) | 0.5 |
| Wetted Materials | PolyPro-GF |
| Elastomers / O-ring | FKM |
| Voltage (V) | 115 |
| Voltage (Range) | 110-120 |
| Motor Frequency | 50/60 |
| Motor | Open |
| Speed (RPM.) | 3450 |
| Self Priming | No |
| Max Operating Temperature (F) | 190 |
| Viscosity | Water 1.00 cp 31.00 ssu |
| Shaft | Ceramic |
| Mechanical Seal | No |
| Other | mag pump |
| Impeller Material | Polypropylene |
| Duty | Continuous |
| Drain | No |
| Port Rotation | No |
| Country of Manufacture | United States |
| Weight (Lbs) | 8.000000 |
| Warranty (YRS.) | 1 |
>
March Pump – Originator of the Centrifugal Sealless Magnetic Drive Pump
US Manufacturer Of Centrifugal Sealless Magnetic Drive Pumps for Chemical, Industrial, Medical, Marine, Solar and OEM applications.
Flows from 1/2 gpm to 200 gpm
Heads up to 160 feet
Available in plastic and metallic construction
AC, DC, Explosion Proof, and Air Motors
Submersible and Non-Submersible
