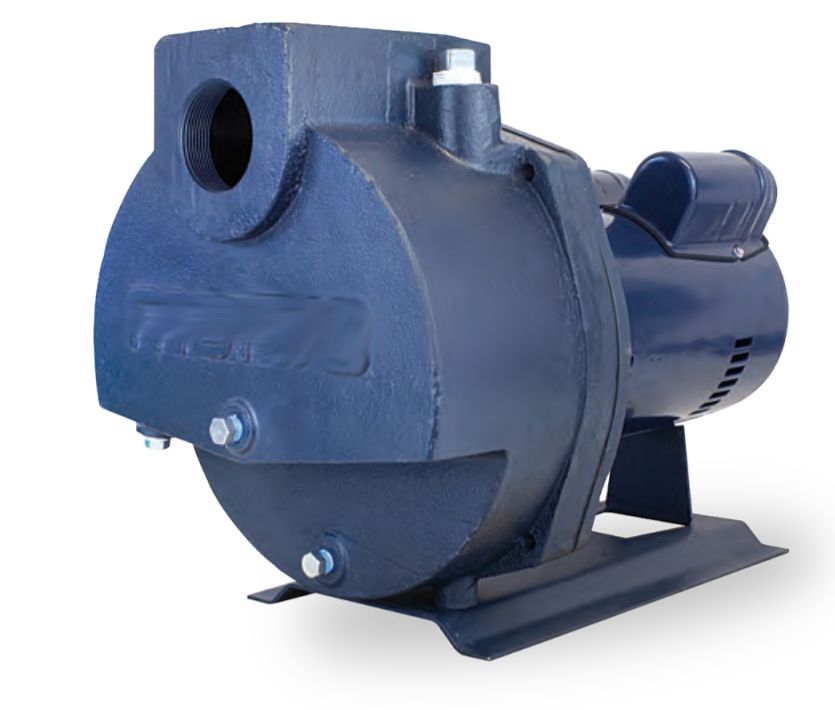

Irrigation pump 3hp
-
Model Number:
MULP300B
-
Product Name:Irrigation pump 3hp
-
Manufacturer:
-
Series (11 Models):
Munro MULP300B
Irrigation pump. LP300B Easy Service Design, Professional Standards with pricing homeowners appreciate.
Best value / performance in a 3 HP irrigation pump size from any manufacturer. Perfect irrigation / sprinkler pump demanding self priming and high head along with robust cast iron construction with Brass impeller.
Designed specifically for turf irrigation, this self-priming pump provides outstanding performance to horsepower ratio. Our LP Series is truly heavy duty, offering standard high-end features that our competitors only offer as pricey add-ons. Professionals trust the LP Series to deliver trouble-free performance.
- Brass impeller – durable and low maintenance with the longest life in its class
- Silica carbide/carbon seal – proven toughness stands up to less than ideal situations
- Cast iron body and internal components – heavy duty for long-term performance and reliability
ADVANTAGES
Durable and long lasting – While many centrifugal turf irrigation pumps are made out of plastic, which wears and warps, our cast iron construction and brass impeller mean that our self-priming pumps are built to stand the test of time, even in more unusual or difficult environments. Testing in tough conditions shows Munro LP series pumps last up to four times as long as typical competitors products.
Industry leading performance to horsepower – The proof is in our curves. In many cases a lower horsepower Munro LP pump will meet the same GPM performance that you’d expect to see only in higher horsepower pumps. With greater starting torque and an efficient run cycle, our pumps truly lead the pack.
Easy to install and maintain – With two priming ports and a durable steel base plate, installing a Munro LP Series is a snap. When it’s time to maintain or winterize the pump, you’ll love our two drain valves. A stainless steel wear ring reduces oxidation and friction, minimizing wear and repairs. If you do have to service the pump, stainless steel bolts and a dry-socket design provide easy access.
| Model Number | MULP300B |
|---|---|
| Series | Sprinkler Irrigation Pump LP |
| Max Flow (GPM.) | 115 |
| Max Flow GPH | 6900 |
| TDH Maximum (Ft) | 141 |
| TDH Maximum (PSI) | 61 |
| TDH BEP (FT.) | 115.000000 |
| Horse Power (HP) | 3 |
| Horsepower (IE .5, 1, 1.5, 20) | 3.0000 |
| Inlet Connection Type | FNPT |
| Inlet (In.) | 2 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 1.5 |
| Wetted Materials | Brass, Cast Iron |
| Elastomers / O-ring | Buna-Nitrile |
| Voltage (V) | 230 |
| Voltage (Range) | 220-240 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 60 |
| Motor Amps (A) | 17 |
| Motor | ODP |
| Speed (RPM.) | 3450 |
| Motor Frame | 56J thrd |
| Self Priming | Yes |
| Suction Lift (FT.) | 15 |
| Max Operating Temperature (F) | 180 |
| Viscosity | Milk 3.20 cp 40.00 ssu |
| Shaft | 304SS |
| Length (In.) | 18.000000 |
| Mechanical Seal Face | Carbon-ceramic |
| Mechanical Seal Type | Single |
| Other | Includes drain cocks on upper & lower casing chambers, 2 plugs 3/4" on top prime ports and plug on sensor port. |
| Impeller Material | Brass |
| Cord Length (Ft.) | 0 |
| Duty | Continuos |
| Drain | Yes |
| Port Rotation | No |
| Country of Manufacture | United States |
| Weight (Lbs) | 94.000000 |
| Warranty (YRS.) | 1 |
| GPM Of Water At 100 Feet Of Head | 95 |
