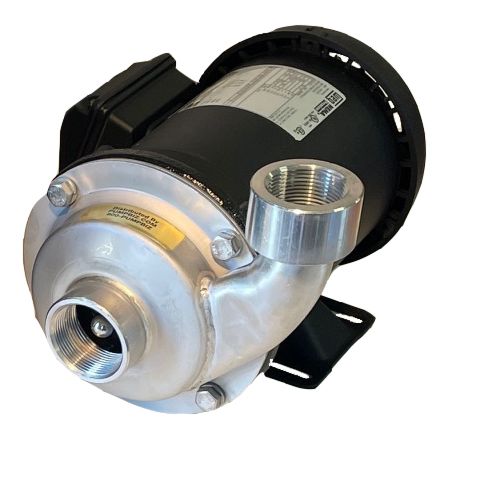

High Volume SS Straight Centrifugal Pump
-
Model Number:
5493-98
-
Product Name:High Volume SS Straight Centrifugal Pump
-
Manufacturer:
-
Series (16 Models):
2HP 3P The AMT line of Stainless Steel Straight Centrifugal pumps is
designed for continuous duty high flow and high pressure
applications including chemical processing, liquid transfer,
Model Number
5493-98
20% Off
Special Price
$874.65
Regular Price
$1,093.31
AMT 5493-98
The AMT line of Stainless Steel Straight Centrifugal pumps is designed for continuous duty high flow and high pressure applications including chemical processing, liquid transfer, cooling, pressure boosting, circulating and applications requiring contaminant free pumping. Constructed of rugged deep drawn Stainless Steel for durability and corrosion resistance. Investment Cast Stainless Steel closed impellers for enhanced performance and high efficiencies. All models include FKM® Type 21 mechanical seals and O-rings which offer a broad range of chemical compatibility. Cast Iron motor adapter provides a positive and rigid mounting to motor. All models are available with TEFC electric motors in Single or Three phase voltage. AMT Stainless Steel Straight Centrifugal pumps are reliable, cost effective and low maintenance. For use with non-flammable liquids which are compatible with pump component materials. Food or beverage services, not requiring FDA rating 5wxt9
- 304 Stainless Steel Construction
- FKMï½® Mechanical Seal and O-Ring
- Investment Cast Stainless Steel Impeller
- Max. Working Pressure 150 PSI
- Max. Temperature 200° F
- Chemical Resistant Design
- Discharge Port Rotates in 90° Increments
- Cast Iron Motor Adapter Provides Rigid Mounting
- AeroSpace Fusion Welding
- Stainless Steel Hardware
- NEMA Base Mounted Motors
- Stainless Steel Motor Shaft
- See Curve "E"
Series: Centrifugal Stainless 58-158 gpm
| Model Number | 5493-98 |
|---|---|
| part number | 5493-999-98 |
| Series | Centrifugal Stainless Pumps 58-158 gpm |
| Max Flow (GPM.) | 130 |
| Max Flow GPH | 7800 |
| TDH Maximum (Ft) | 69 |
| TDH Maximum (PSI) | 30 |
| Horse Power (HP) | 2 |
| Horsepower (IE .5, 1, 1.5, 20) | 2.0000 |
| Inlet Connection Type | FNPT |
| inlet size | 2in |
| Inlet (In.) | 2 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 1.5 |
| Wetted Materials | 304SS |
| Elastomers / O-ring | Buna-Nitrile |
| Voltage (V) | 230/460 |
| Voltage (Range) | 220-240/460-480 |
| Motor | TEFC |
| Self Priming | ---- |
| Suction Lift (FT.) | 5 |
| Max Operating Temperature (F) | 120 |
| Max Particle Size (In) | .125 |
| Viscosity | Glycerine 880.00 cp 5000.00 ssu |
| Stages | 1 |
| Shaft | 304SS |
| Length (In.) | 14.200000 |
| Mechanical Seal | FKM TYPE 21 |
| Mechanical Seal Face | Carbon-ceramic |
| Impeller Size (IN.) | a |
| Impeller Number (In.) | 1 |
| Other | amt pump |
| Rotation | cw |
| Port Rotation | Yes |
| Country of Manufacture | United States |
| Weight (Lbs) | 44.000000 |
| Quick Ship | Yes |
| UPC | 072684650824 |
| GPM Of Water At 30 Feet Of Head | 92 |
| GPM Of Water At 40 Feet Of Head | 85 |
| GPM Of Water At 50 Feet Of Head | 55 |
