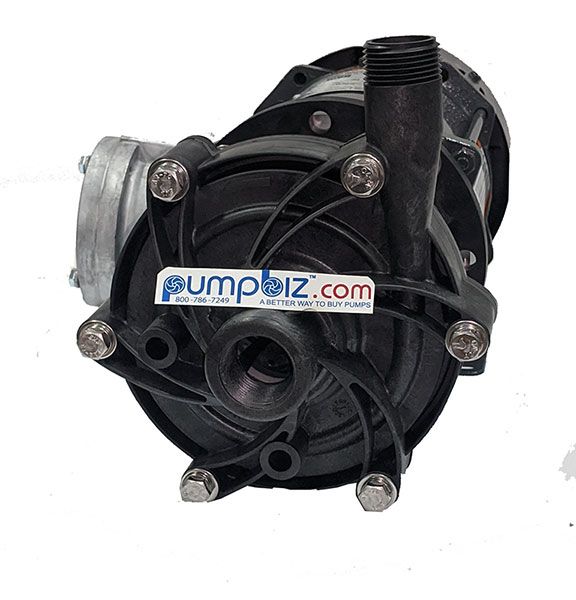

FTI DB6 Magnetic pump

FTI DB6 Magnetic pump, PolyPro for chemicals / solvents

DB Series hazardous duty magnetic drive pump—the new standard for high hydraulic efficiency and corrosive fluid handling. With design-aided magnetic flux and computational fluid dynamics technology, the DB Series packs all the high-pressure, fluid-handling punch you’d expect from a Finish Thompson pump Borne from a painstaking, extensive R&D effort, the efficiency of the DB Series lowers energy consumption and operating costs over the long life cycle of the pump. Constructed from Polypropylene or PVDF, the DB Series operates durably in the most corrosive of environments. It can even run dry without damage. This rock solid embodiment of technological advancement is superior in precision, performance and reliability to other pumps on the market. That’s why we’re offering the industry’s best five-year warranty. And why everyone else will undoubtedly be headed back to the drawing board.

1. Easy Set Outer Drive Measurement-free outer drive ensures optimum magnet alignment and easy motor installation. Allows optional vertical operation when used with IEC motors.
2. Multiple Impeller Diameters Allows hydraulic requirements to be precisely met. Two-piece impeller design allows impeller to be changed without having to replace inner drive.
3. Multiple Connections NPT or BSP threads, raised face adjustable flanges or union.
4. Run Dry System The DB can run dry without damage when equipped with a chemical grade carbon bushing in optimum operating conditions. This helps protect the pump from operator errors and system upsets.

Features

• Close-coupled design
• TEFC motor
• Polypropylene or PVDF Kynar construction available
• Replaceable shaft
• ISO 1940 G2.5 balancing
• Mounts to motor without disassembly
• Back pullout design
• Five-year warranty
• CE certified/ATEX available

Capabilities

• High operating efficiency— up to 70%
• High working pressure— up to 90 psi
• High specific gravity handling—over 1.8
• Maximum viscosity: 150 cP
• Maximum Temperature: Polypropylene—180º F (82º C); PVDF—220º F (104º C)
• New application is for CBD oil isolate production, extraction
• Cleaning: sodium hydroxide (NaOH). Sodium hydroxide is sometimes called caustic soda or lye. It is a common ingredient in cleaners and soaps. Impeller trim may be required depending on concentration. i.e. 50% NaOH = 1.54sg
