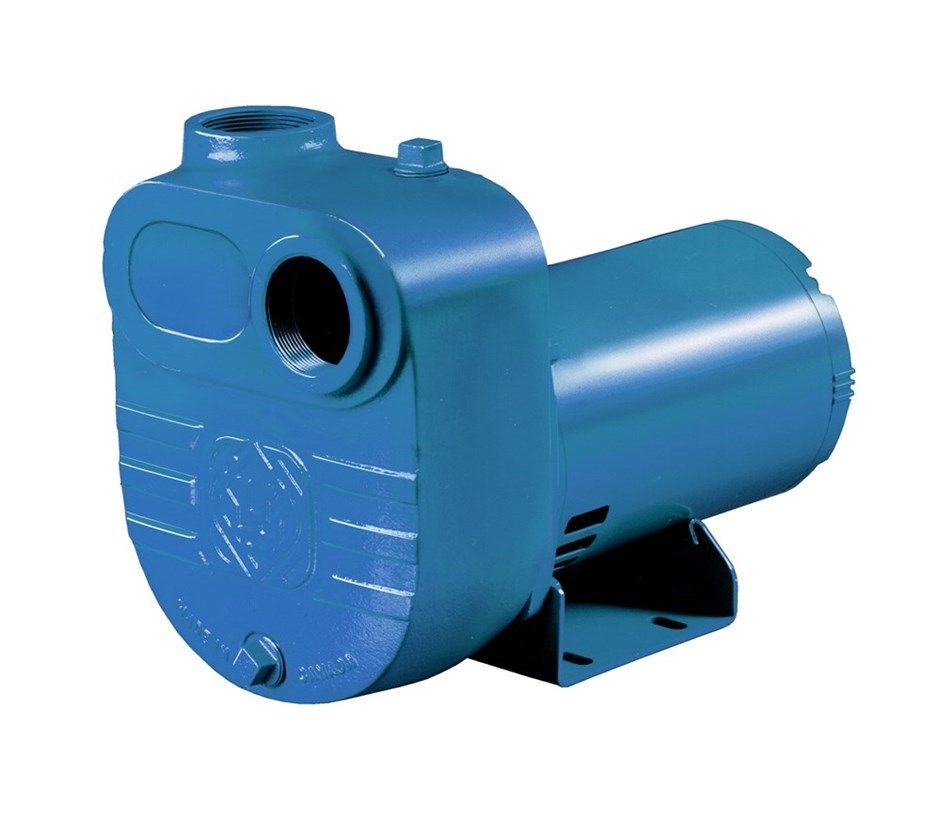

FBSE-150-S pump
-
Model Number:
92931015
-
Product Name:FBSE-150-S pump
-
Manufacturer:
-
Series (9 Models):
1.5HP 115/230v
Model Number
92931015
Franklin 92931015
Self priming centrifugal water pump with built-in check valve.
Casing: Cast Iron; 2" NPT suction & discharge; semi-open
impeller
Motor: CSA approved; equipped with stainless steel shaft and
automatic thermal overload protection. Square flange 56J.
Old model # BSE-S150
| Model Number | 92931015 |
|---|---|
| Series | FBSE Franklin Pump |
| Max Flow (GPM.) | 115 |
| Max Flow GPH | 6900 |
| TDH Maximum (Ft) | 62 |
| TDH Maximum (PSI) | 27 |
| Horse Power (HP) | 1 1/2 |
| Horsepower (IE .5, 1, 1.5, 20) | 1.5000 |
| Inlet Connection Type | FNPT |
| inlet size | 2in |
| Inlet (In.) | 2 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 2 |
| Wetted Materials | Cast Iron |
| Elastomers / O-ring | Buna-Nitrile |
| Voltage (V) | 115/230 |
| Voltage (Range) | 110-120/220-240 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 60 |
| Motor | ODP |
| Speed (RPM.) | 3450 |
| Motor Frame | 56J thrd |
| Self Priming | Yes |
| Suction Lift (FT.) | 15 |
| Max Operating Temperature (F) | 120 |
| Viscosity | Milk 3.20 cp 40.00 ssu |
| Shaft | 416SS |
| Mechanical Seal | No |
| Mechanical Seal Face | Carbon-ceramic |
| Mechanical Seal Type | Single |
| Motor Bearings | Ball |
| Rotation | clockwise viewed from motor end |
| Impeller Material | Cast Iron, semi-open |
| Cord Length (Ft.) | 0 |
| Duty | Continuous |
| Drain | Yes |
| Port Rotation | Yes |
| Country of Manufacture | United States |
| Weight (Lbs) | 52.000000 |
| Warranty (YRS.) | 1 |
| GPM Of Water At 20 Feet Of Head | 100 |
| GPM Of Water At 30 Feet Of Head | 78 |
| GPM Of Water At 40 Feet Of Head | 56 |
| GPM Of Water At 50 Feet Of Head | 25 |
