Electric Irrigation pump
-
Model Number:
15HLT ODP
-
Product Name:Electric Irrigation pump
-
Manufacturer:
-
Series (20 Models):
15HP 230/460v 4" ODP
Model Number
15HLT ODP
$4,037.90

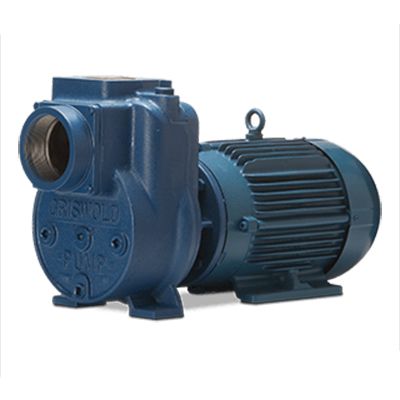

Griswold 15HLT ODP
High Pressure irrigation pumps. Griswoldç—´ H
series offers options other high head self-priming pumps. High
pressure water pumps ideally suited for golf course turf
irrigation, lawn sprinkler, fire protection, swimming pool,
industrial, marine and general transfer applications where greater
flows and higher heads are needed.
Heavy duty work horse. Sturdy cast iron design with bronze impeller engineered for years of trouble free irrigation pump service. High head pump.
| Model Number | 15HLT ODP |
|---|---|
| Series | H High Pressure Irrigation pumps Self-priming CI |
| Max Flow (GPM.) | 170 |
| Max Flow GPH | 10200 |
| TDH Maximum (Ft) | 260 |
| TDH Maximum (PSI) | 113 |
| Horse Power (HP) | 15 |
| Horsepower (IE .5, 1, 1.5, 20) | 15.0000 |
| Inlet Connection Type | FNPT |
| inlet size | 3" |
| Inlet (In.) | 3 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 2 |
| Wetted Materials | Bronze, Cast Iron |
| Elastomers / O-ring | Buna-Nitrile |
| Voltage (V) | 230/460 |
| Voltage (Range) | 220-240/460-480 |
| Phase (Ø) | Three (3) |
| Motor Frequency | 60 |
| Motor | ODP |
| Speed (RPM.) | 3450 |
| Motor Frame | 213/5JM |
| Self Priming | Yes |
| Suction Lift (FT.) | 25 |
| Max Operating Temperature (F) | 140 |
| Viscosity | Water 1.00 cp 31.00 ssu |
| Shaft | 304SS |
| Mechanical Seal Face | Carbon-ceramic |
| Mechanical Seal Type | Single |
| Impeller Size (IN.) | 7.970000 |
| Coupling | N |
| Other | Order a motor controller / starter seperately for a complete package. |
| Impeller Material | Bronze – closed |
| Cord Length (Ft.) | 0 |
| Drain | Yes |
| Port Rotation | Yes |
| Country of Manufacture | United States |
| Weight (Lbs) | 212.000000 |
| Warranty (YRS.) | 1 |
