Demand/Bypass
-
Model Number:
5517-1E1-58C
-
Product Name:Demand/Bypass
-
Manufacturer:
5.3/gpm 60psi 115v
Model Number
5517-1E1-58C
$217.33
Remco 5517-1E1-58C

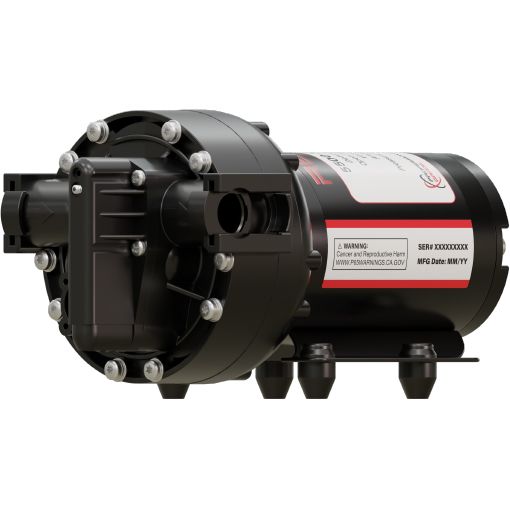

115v AC electric diaphragm pump. PROFLO 5500 OVERVIEW Engineered to withstand the most rigorous and punishing duty cycles, the ProFlo 5500 Series Pump is a top-line performer. We make this claim because we use the highest quality American Made pump components, and back it up with support for only one mission: yours.
What makes this pump special is Remco’s ability to offer custom configurations that precisely match your industrial and commercial needs. Typical Applications: Heavy Duty Spraying, high Pressure Cleaning, agricultural Spraying, bulk Transfer, starter Fertilizer, de-icing, roof Cleaning *Santoprene- EPDM-based thermoplastic elastomer and is resistant to mild acids, some solvents and bases. Often used on Electric Potable Water Service Cart and Lavatory.
The demand pump was designed with both. Demand pumps operated as a positive displacement pump which has a pressure switch built in. When flow is open the pump runs, when the discharge is closed or restricted to much the psi switch senses the set point and turns off the pump automatically.
Pick In/Out fittings to suit your needs.
| Model Number | 5517-1E1-58C |
|---|---|
| Max Flow (GPM.) | 5 |
| Max Flow GPH | 300 |
| TDH Maximum (Ft) | 120 |
| TDH Maximum (PSI) | 60 |
| Inlet Connection Type | Quick connect |
| Inlet (In.) | 0 |
| Outlet Connection Type | Quick connect |
| Outlet (In.) | 0 |
| Wetted Materials | PolyPro-GF |
| Elastomers / O-ring | FKM |
| Diaphragm | FKM |
| Voltage (V) | 115 |
| Voltage (Range) | 110-120 |
| Phase (Ø) | Single (1) |
| Motor | TENV |
| Self Priming | Yes |
| Suction Lift (FT.) | 14 |
| Max Operating Temperature (F) | 140 |
| Viscosity | SAE 10 oil 88.00 cp 500.00 ssu |
| Mechanical Seal | No |
| Drain | No |
| Port Rotation | No |
| Country of Manufacture | United States |
| Weight (Lbs) | 10.000000 |
| Warranty (YRS.) | 1 |
>
Remco Professional Grade pumps.
Quality starts with our vision to produce fluid handling equipment that excels in performance and reliability, and surpasses the end user’s expectations.
Industry professionals choose Remco first because of our commitment to pro-level quality, engineering and customer service.
The Remco PowerRV Series provides a solution for every RV fluid pumping challenge, from potable water to gray and black water.
Electric diaphragm demand pumps for fluid handling applications such as purification, light industrial, food and beverage, agricultural, and automotive.
Available in 12VDC, 24VDC, 115VAC
