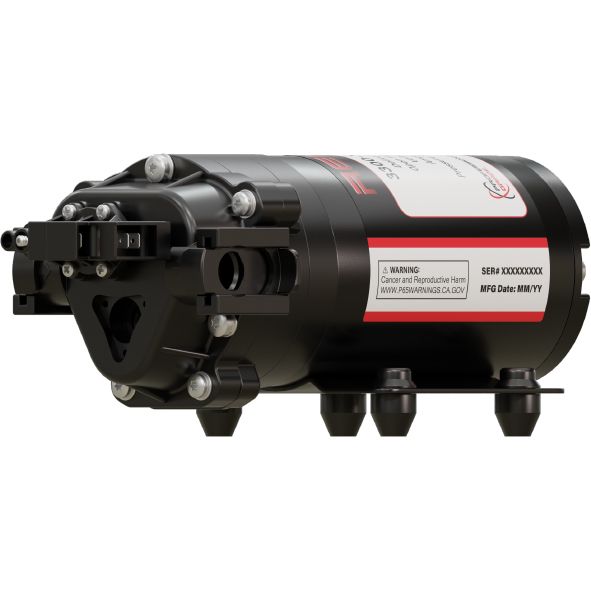

115v Demand Pump 2.2GPM
-
Model Number:
3313-1E1-52C
-
Product Name:115v Demand Pump 2.2GPM
-
Manufacturer:
2.2GPM 60PSI 115AC
Model Number
3313-1E1-52C
$206.41
Remco 3313-1E1-52C
115v Demand Pump 2.2GPM
Demanding industrial pump environments require precise engineering and quality components, the demand pump was designed with both. Demand pumps operated as a positive displacement pump which has a pressure switch built in. Diaphragm pump with automatic switch, when flow is open the pump runs, when the discharge is closed or restricted to much the psi switch senses the set point and turns off the pump automatically. For it is one of the most powerful and productive diaphragm pumps you can buy, pumping up to 2.2 gallons per minute. If your specifications call for low noise, smooth operation, continuous operation and high capacity, it will meet the challenge. Can easily be supplied with garden hose adapters. Typical Applications: Heavy Duty Spraying, high Pressure Cleaning, agricultural Spraying, bulk Transfer, starter Fertilizer, de-icing, roof Cleaning *Santoprene- EPDM-based thermoplastic elastomer and is resistant to mild acids, some solvents and bases
Pick In/Out fittings to suit your application.
Replace shurflo 8000-033-236 on bottle filling machines.
| Model Number | 3313-1E1-52C |
|---|---|
| Max Flow (GPM.) | 2 |
| Max Flow GPH | 120 |
| TDH Maximum (Ft) | 138 |
| TDH Maximum (PSI) | 60 |
| Inlet Connection Type | Quick connect |
| Inlet (In.) | 0.5 |
| Outlet Connection Type | Quick connect |
| Outlet (In.) | 0.5 |
| Wetted Materials | PolyPro-GF |
| Elastomers / O-ring | FKM |
| Diaphragm | Santoprene |
| Voltage (V) | 115 |
| Voltage (Range) | 110-120 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 60-50 |
| Motor Amps (A) | 1.5000 |
| Motor | TENV |
| Self Priming | Yes |
| Max Operating Temperature (F) | 140 |
| Max Particle Size (In) | 0.0300 |
| Viscosity | SAE 10 oil 88.00 cp 500.00 ssu |
| Mechanical Seal | No |
| Other | NOTE : This pump is rated for Intermittent Duty : "Intermittent Duty" is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation. |
| Cord Size | 14/2 |
| Cord Length (Ft.) | 4 |
| Drain | No |
| Port Rotation | No |
| Country of Manufacture | United States |
| Weight (Lbs) | 8.000000 |
| Warranty (YRS.) | 1 |
>
Remco Professional Grade pumps.
Quality starts with our vision to produce fluid handling equipment that excels in performance and reliability, and surpasses the end user’s expectations.
Industry professionals choose Remco first because of our commitment to pro-level quality, engineering and customer service.
The Remco PowerRV Series provides a solution for every RV fluid pumping challenge, from potable water to gray and black water.
Electric diaphragm demand pumps for fluid handling applications such as purification, light industrial, food and beverage, agricultural, and automotive.
Available in 12VDC, 24VDC, 115VAC
