Chemtraveller Portable Explosion Proof 110V AC
-
Model Number:
SS465BEXP
-
Product Name:Chemtraveller Portable Explosion Proof 110V AC
-
Manufacturer:
-
Series (10 Models):
Model Number
SS465BEXP
$1,140.00
Sotera SS465BEXP

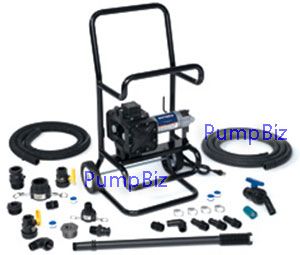

The Sotera 110 volt AC electric Chemtraveller is built for serious pumping power at your bulk plant or loading pad. Electric diaphragm pump is positive displacement and pumps water like to thick viscous chemicals at a fixed flow rate. The high profile tubular frame is equipped with wheels, making it easy to roll right where you need it. 1" x 9' suction and 1" x 14' discharge Hose, ball valve, nozzle. If no hose and valve needed see SS435. 30 minute duty cycle. Constant pressure regardless of load.
click here to view the digital meter pageFeatures:
Thermal overload protection
Quality ball bearing and needle bearing construction
Sealed motor
13 gpm
110 volt Explosion proof AC 1/4HP, 60Hz motor
EXP.| Model Number | SS465BEXP |
|---|---|
| Series | Electric Transfer Pump |
| Max Flow (GPM.) | 13 |
| Max Flow GPH | 780 |
| TDH Maximum (Ft) | 34 |
| TDH Maximum (PSI) | 15 |
| Horse Power (HP) | 1/4 |
| Horsepower (IE .5, 1, 1.5, 20) | 0.2500 |
| Inlet Connection Type | FNPT |
| inlet size | 1in |
| Inlet (In.) | 1 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 1 |
| Wetted Materials | 304SS, PolyPro-GF |
| Elastomers / O-ring | FKM |
| Diaphragm | Santoprene |
| Voltage (V) | 115 |
| Voltage (Range) | 110-120 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 60 |
| Motor | EXP (C 1, Gp C/D) |
| Speed (RPM.) | 2850 |
| Self Priming | Yes |
| Suction Lift (FT.) | 15 |
| Max Operating Temperature (F) | 130 |
| Viscosity | Catsup 3000.00 cp 20000.00 ssu |
| Mechanical Seal | No |
| Mechanical Seal Type | Double |
| Other | HEAVY-DUTY 3-WIRE CORD The cord length is 7.5 FT with plug.. WARNING: cord and plug are not Explosion Proof. |
| Duty | Int. |
| Drain | Yes |
| Port Rotation | Yes |
| Country of Manufacture | United States |
| Weight (Lbs) | 50.000000 |
| Warranty (YRS.) | 1 |
