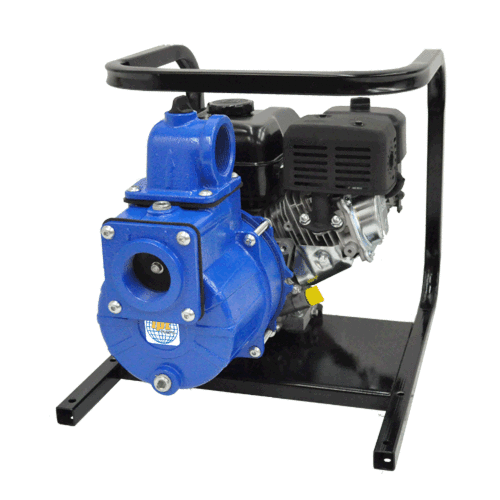

2" Solids Handling Pump

Model Number:

2G4XACR
Product Name:

2" Solids Handling Pump
Manufacturer:

AMT Pumps
Series (3 Models):

Cast Iron Gasoline & Diesel Driven Solids Handling Pumps

Heavy Duty Cast Iron Construction

Model Number

2G4XACR

Specifications

$845.00

Email to a Friend Price Match

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AMT 2G4XACR

2" Solids Handling Pump Heavy Duty Cast Iron Construction. Obsolete due to engine brand.

EPDM/EPR Mechanical Seal, O-Rings and Gaskets
2" NPT Port Sizes
Self-Priming up to 20 Ft.
Semi-Open, Clog Resistant Impellers
Maximum Solids Handing 1/2"
Built-in EPDM/EPR Check Valve • Engine Type: Briggs & Stratton Gasoline OHV
Heavy Duty Steel Roll Frame Included
Optional Wheel Kit Available

The IPT line of Cast Iron Engine Driven SolidsHandling pumps offers an upgraded debrishandling capability in wear resistant castiron construction. Applications include: highvolume liquid transfer, agriculture/liquidfertilizer, irrigation, commercial draining andconstruction. All models feature durable allcast iron construction and clog-resistantimpeller to ensure a long life for the completepump. Dual volute design reduces radial loadon engines. Simple four bolt design for easycleanout, tool included. EPDM/EPR seal and gaskets for use with many Ag chemicals, anti-freeze, alcohols, ozone, freon, etc. Check yourspecific chemical for compatibility.

Simple Four Bolt Design for Easy Cleanout, Tool Included
EPDM/EPR Mechanical Seals, O-Rings and Gaskets
Discharge Ports Rotate in 90° Increments
Heavy Duty Cast Iron Construction Ensures Durability for Severe Service Conditions
O-Ring Casing Seal for Ease of Service and Cleaning
Maximum Working Pressure 75 PSI
Maximum Temperature 200° F
Maximum Flow 182 GPM
Maximum Head 106 Ft.
Dual Volute Design for Hydraulic Balance
Self-Primes to 10 Feet in 1 Minute with Maximum Suction Lift of 20 Feet
Heavy Duty Steel Roll Frame for Portability

More Information
Model Number	2G4XACR
part number	2G4XACR-999-
Series	Cast Iron Gasoline & Diesel Driven Solids Handling Pumps
Max Flow (GPM.)	160
Max Flow GPH	9600
Inlet Connection Type	FNPT
inlet size	2"
Inlet (In.)	2
Outlet Connection Type	FNPT
Outlet (In.)	2
Elastomers / O-ring	EPDM
Motor	Gas Engine
Speed (RPM.)	3450
Self Priming	Yes
Max Operating Temperature (F)	200
Max Particle Size (In)	.75
Viscosity	Vegetable Oil 34.60 cp 200.00 ssu
Mechanical Seal	EPDM/EPR
Mechanical Seal Face	Carbon-ceramic
Mechanical Seal Type	Single
Impeller Material	Cast Iron
Drain	Yes
Port Rotation	Yes
Run Time (HR.)	1.2 hours
Fuel Tank Size	2 Ltr (.52 Gal)
Country of Manufacture	United States
Weight (Lbs)	90.000000
Engine Brand	Briggs
UPC	072684652574
GPM Of Water At 40 Feet Of Head	135
GPM Of Water At 60 Feet Of Head	110
GPM Of Water At 80 Feet Of Head	80

AMT Pump Company is A Subsidiary of The Gorman-Rupp Company located in Mansfield, Ohio. AMT offers over 1000+ different standard model numbers of which 400+ are readily available and offered as QSP, Quick Ship Products. AMT manufactures and sells Industrial / Commercial pumps & accessories through authorized distributors.

Virtually every product AMT sells is engineered and designed by the company. Pump components are machined, assembled and tested at the Royersford, Pennsylvania facility.

AMT’s unique designs and patented products have made the company the industry leader for their high quality pumps.
