Cast Iron Centrifugal Pump
-
Model Number:
370D-95
-
Product Name:Cast Iron Centrifugal Pump
-
Manufacturer:
-
Series (24 Models):
230/460v 1HP TEFC
Model Number
370D-95
20% Off
Special Price
$606.05
Regular Price
$757.56
AMT 370D-95

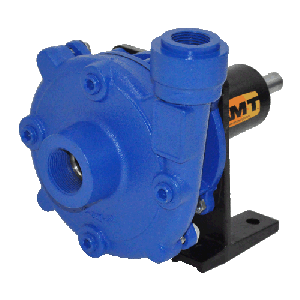

The AMT 370D-95 is a cast iron straight centrifugal pump with a 1 HP, 230/460V three-phase TEFC motor, delivering up to 64 GPM (3,840 GPH) at heads to 58 feet through a 1-inch inlet and 3/4-inch outlet (FNPT).
The cast iron body is paired with a semi-open stainless steel impeller, a stainless steel shaft and Buna-N O-rings.Type 6 mechanical seals, a self-cleaning semi-open impeller and rear pull-out service keep maintenance simple.
It is built for continuous-duty, low-pressure OEM, industrial, commercial and general service, and suits circulation, chemical processing, liquid transfer and cooling. Check that your liquid is compatible with the pump materials.
When pumping bio-diesel use the optional FKM seals
See Curve E in images
Series: Centrifugal Pumps to 90 gpm
amt ipt ots gr
Made in the USA.
| Model Number | 370D-95 |
|---|---|
| part number | 370D-999-95 |
| Series | Centrifugal Pumps to 90 gpm |
| Max Flow (GPM.) | 64 |
| Max Flow GPH | 3840 |
| TDH Maximum (Ft) | 58 |
| TDH Maximum (PSI) | 25 |
| Horse Power (HP) | 1 |
| Horsepower (IE .5, 1, 1.5, 20) | 1.0000 |
| Inlet Connection Type | FNPT |
| inlet size | 1in |
| Inlet (In.) | 1 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 0.75 |
| Wetted Materials | CI-SS |
| Elastomers / O-ring | Buna-Nitrile |
| Voltage (V) | 230/460 |
| Voltage (Range) | 220-240/460-480 |
| Phase (Ø) | Three (3) |
| Motor | TEFC |
| Self Priming | ---- |
| Suction Lift (FT.) | 5 |
| Max Operating Temperature (F) | 120 |
| Max Particle Size (In) | .125 |
| Viscosity | Glycerine 880.00 cp 5000.00 ssu |
| Shaft | 416SS |
| Length (In.) | 11.800000 |
| Mechanical Seal | TYPE6 |
| Mechanical Seal Face | Carbon-ceramic |
| Motor Bearings | Ball |
| Impeller Size (IN.) | a |
| Impeller Number (In.) | 1 |
| Other | amt pump |
| Rotation | cw |
| Impeller Material | Stainless Steel, Semi-Open |
| Cord Length (Ft.) | 0 |
| Duty | Continuous |
| Port Rotation | Yes |
| Country of Manufacture | United States |
| Weight (Lbs) | 36.000000 |
| UPC | 072684650783 |
