Cast Iron 4˝ Self-Priming Pump 15HP

15HP 230/460v
Model Number
4872-95
$3,467.00
amt_4873-95 4" pump

AMT 4872-95

AMT Self-Priming 4" Cast Iron dewatering Centrifugal pumps are designed for a broad range of high capacity applications, including dewatering, liquid transfer, circulation, drainage and irrigation. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with self-cleaning, semi-open stainless steel impeller, which can handle 1/2" diameter semi-solids. Built-in check valves for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing.

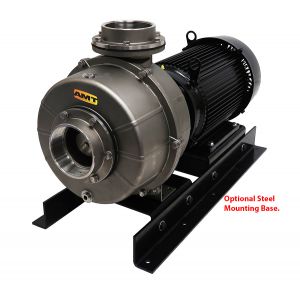

Optional Mounting Base Available on All 4" Models in the 487_ series. A200-90

More Information
Model Number 4872-95
part number 4872-999-95
Series Cast Iron 4˝ Self-Priming Centrifugal Pump
Max Flow (GPM.) 660
Max Flow GPH 39600
Minimum Flow (GPM.) 120
TDH Maximum (Ft) 115
Horse Power (HP) 15
Horsepower (IE .5, 1, 1.5, 20) 15
Inlet Connection Type FNPT
Inlet (In.) 4
Outlet Connection Type FNPT
Outlet (In.) 4
Elastomers / O-ring Buna-Nitrile
Voltage (V) 208-230/460
Voltage (Range) 208-240/460
Phase (Ø) Three (3)
Motor Frequency 60 / 50
Motor Amps (A) 36/18
Motor TEFC
Speed (RPM.) 3450
Motor Frame 215JM
Self Priming Yes
Suction Lift (FT.) 20
Max Operating Temperature (F) 180
Max Particle Size (In) 0.5
Viscosity Vegetable Oil 34.60 cp 200.00 ssu
Shaft 416SS
Mechanical Seal Face Carbon-ceramic
Mechanical Seal Type Single
Impeller Number (In.) B
Other 1756-004-00 Impeller Screw - 3/8-16X1.25 ALLOY STL PLTD CNTRSNK SCREW. Replace oring also! Use 7/32"allen
Rotation CW facing rear of pump
Impeller Material 304 SS, semi-open
Cord Length (Ft.) 0
Duty Continuous
Drain Yes
Port Rotation No
Country of Manufacture United States
Weight (Lbs) 310.000000
Quick Ship Yes
UPC 072684652914
Warranty (YRS.) 1
