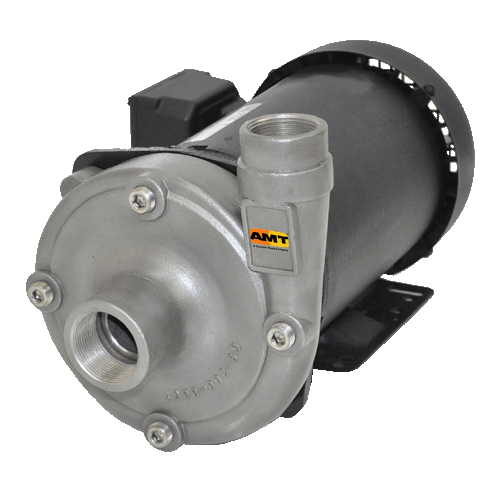

Bronze High Pressure Centrifugal Pump
-
Model Number:
490D-97
-
Product Name:Bronze High Pressure Centrifugal Pump
-
Manufacturer:
-
Series (52 Models):
2HP 230/460v TEFC
Model Number
490D-97
25% Off
Special Price
$1,281.38
Regular Price
$1,708.50
AMT 490D-97
High Pressure Centrifugal Pump Series Page Link. High Head
Centrifugal Pumps. Designed for continuous duty, high pressure,
high flow, general service water circulation and transfer (boosting
water in high rise apartments, hotels & office buildings,
circulation of hot & chilled water, pressure boosting for
cooling towers). Series 48 inlet & outlet are 1.25" & 1"
while series 49 is 1.50" & 1.25 respectively.
See Curve "D"
Include Silicon Carbide / FKM N Type 31 Seal Factory installed: 489X-300-VS
| Model Number | 490D-97 |
|---|---|
| part number | 490D-999-97 |
| Series | Centrifugal High Pressure Pumps 34-64 psi |
| Max Flow (GPM.) | 95 |
| Max Flow GPH | 5700 |
| TDH Maximum (Ft) | 110 |
| TDH Maximum (PSI) | 47 |
| Horse Power (HP) | 2 |
| Horsepower (IE .5, 1, 1.5, 20) | 2.0000 |
| inlet size | 1 ½" |
| Inlet (In.) | 1.5 |
| Outlet (In.) | 1 |
| Wetted Materials | 316SS, Bronze |
| Elastomers / O-ring | Buna-Nitrile |
| Voltage (V) | 230/460 |
| Voltage (Range) | 220-240/460-480 |
| Motor Amps (A) | 2 |
| Motor | ODP |
| Motor Frame | 56J thrd |
| Self Priming | ---- |
| Suction Lift (FT.) | 5 |
| Max Operating Temperature (F) | 120 |
| Max Particle Size (In) | .2 |
| Viscosity | Milk 3.20 cp 40.00 ssu |
| Length (In.) | 17.500000 |
| Mechanical Seal Face | SiC |
| Mechanical Seal Type | Single |
| Motor Bearings | Ball |
| Impeller Size (IN.) | b |
| Impeller Number (In.) | 3 |
| Other | amt pump |
| Rotation | cw |
| Cord Length (Ft.) | 0 |
| Duty | Continuous |
| Drain | No |
| Country of Manufacture | United States |
| Weight (Lbs) | 50.000000 |
| UPC | 072684650719 |
| Warranty (YRS.) | 1 |
Supporting Docs
Supporting Docs
AMT Pump Company is A Subsidiary of The Gorman-Rupp Company located in Mansfield, Ohio. AMT offers over 1000+ different standard model numbers of which 400+ are readily available and offered as QSP, Quick Ship Products. AMT manufactures and sells Industrial / Commercial pumps & accessories through authorized distributors.
Virtually every product AMT sells is engineered and designed by the company. Pump components are machined, assembled and tested at the Royersford, Pennsylvania facility.
AMT’s unique designs and patented products have made the company the industry leader for their high quality pumps.
