Bronze Centrifugal Pump Pedestal
-
Model Number:
60PS-10
-
Product Name:Bronze Centrifugal Pump Pedestal
-
Manufacturer:
-
Series (3 Models):
Oberdorfer 60PS-10
Bronze Centrifugal Pedestal mounted for long coupling to customer drive. The liquid flow is proportional to the pump speed--the higher the speed the greater the flow. Horsepower required varies directly as flow and pressure. Maximum horsepower is required with a wide open discharge line. This is the point of maximum flow. With a throttled discharge, the flow decreases at a greater rate than the pressure increases thereby requiring less horsepower at the higher pressures. This is known as an “unloading” feature of the pump. The pedestal centrifugal pumps can be direct driven by electric motors at either 3450 R.P.M. or 1725 R.P.M. Performance for both speeds are shown in the curves above. The 60P pedestal centrifugal pumps can be pulley driven at any desired intermediate speed.
- All Bronze
- Marine, Flat saws
- Carbon Face Mechanical Pump Seal
- Cast Iron bearing pedestal with ball bearings
- Designed for Pulley Drive
- No bearing lubrication required
- For Close Coupled Style, see Model 600
- Will Handle Contaminated Liquids
- Extremely Quiet
- A Standard in the Marine Air Conditioning Industry
- Counter-Clockwise Rotation facing pump end
| Model Number | 60PS-10 |
|---|---|
| part number | 60PS-10 |
| Series | Bronze Centrifugal |
| Max Flow (GPM.) | 22 |
| Max Flow GPH | 1320 |
| TDH Maximum (Ft) | 52 |
| TDH Maximum (PSI) | 22 |
| TDH BEP (FT.) | 32.000000 |
| Inlet Connection Type | FNPT |
| inlet size | Less than 1in |
| Inlet (In.) | 0.75 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 0.5 |
| Wetted Materials | 304SS, Bronze |
| Elastomers / O-ring | FKM |
| Speed (RPM.) | variable |
| Self Priming | Yes |
| Max Operating Temperature (F) | 212 |
| Viscosity | SAE 30 oil 352.00 cp 2000.00 ssu |
| Shaft | 304SS |
| Length (In.) | 6.000000 |
| Mechanical Seal | No |
| Mechanical Seal Face | Carbon-ceramic |
| Mechanical Seal Type | Single |
| Motor Bearings | Ball |
| Other | This centrifugal pump is not self priming. Normally these pumps must be installed below the liquid level so that the liquid flows to the pump by gravity. However, if a foot valve is used at the beginning of the suction line and all air is bled from the suction line and pump by careful manual priming, these pumps will lift liquid on the suction side up to 15 ft. Such a system is only as positive as the ability of the foot valve to seal and keep the suction line and pump full of liquid. If the foot valve should leak, the pump will not prime. |
| Rotation | CCW facing front of pump |
| Impeller Material | Bronze, open |
| Duty | Continuous |
| Drain | No |
| Port Rotation | Yes |
| Country of Manufacture | United States |
| Weight (Lbs) | 12.000000 |
| Warranty (YRS.) | 1 |
3682-97 $666.19

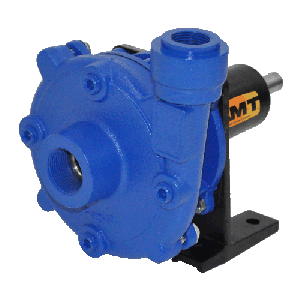

AMT Straight Centrifugal Pedestal Bronze pumps are designed for continuous-duty OEM, Industrial/Commercial and processing applications including circulation, chemical processing, liquid transfer, heating and cooling.
