Bronze Centrifugal Pump

Model Number:

490C-97
Product Name:

Bronze Centrifugal Pump
Manufacturer:

AMT Pumps
Series (52 Models):

Centrifugal High Pressure Pumps 34-64 psi

2HP 230v/1 TEFC

Model Number

490C-97

Specifications

20% Off Special Price $1,366.80 Regular Price $1,708.50

Email to a Friend Price Match

Skip to the end of the images gallery

Skip to the beginning of the images gallery

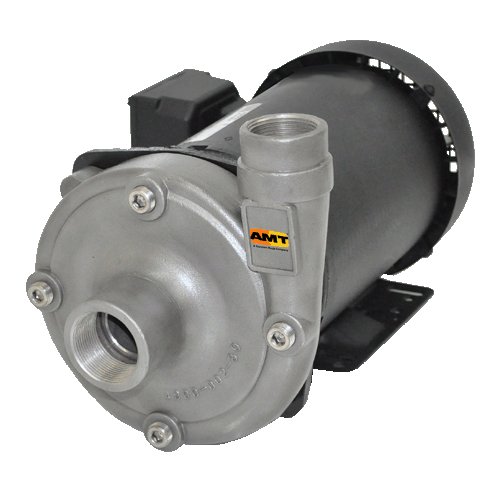

AMT 490C-97

High Pressure Centrifugal Pump Series Page Link. The straight centrifugal pump is designed for continuous duty low pressure OEM, industrial/commercial and general service applications including circulation, chemical processing, liquid transfer, cooling, sprinkler/fire protection systems & pressure boosting. Available in single & three phase ODP or TEFC motors. All models feature Type 21 mechanical seals & O-rings. See Curve "D"

Include Silicon Carbide / FKM N Type 31 Seal Factory installed: 489X-300-VS

More Information
Model Number	490C-97
part number	490C-999-97
Series	Centrifugal High Pressure Pumps 34-64 psi
Max Flow (GPM.)	95
Max Flow GPH	5700
TDH Maximum (Ft)	110
TDH Maximum (PSI)	48
Horse Power (HP)	2
Horsepower (IE .5, 1, 1.5, 20)	2.0000
inlet size	1 ½"
Inlet (In.)	1.5
Outlet (In.)	1
Wetted Materials	316SS, Bronze
Elastomers / O-ring	Buna-Nitrile
Voltage (V)	230
Voltage (Range)	220-240
Motor Amps (A)	2
Motor	ODP
Motor Frame	56J thrd
Self Priming	----
Suction Lift (FT.)	5
Max Operating Temperature (F)	120
Max Particle Size (In)	.2
Viscosity	Milk 3.20 cp 40.00 ssu
Length (In.)	18.000000
Mechanical Seal	TYPE 21
Mechanical Seal Face	SiC
Mechanical Seal Type	Single
Motor Bearings	Ball
Impeller Size (IN.)	b
Impeller Number (In.)	3
Other	amt pump
Rotation	cw
Cord Length (Ft.)	0
Duty	Continuous
Drain	No
Country of Manufacture	United States
Weight (Lbs)	50.000000
UPC	072684650806
Warranty (YRS.)	1

Supporting Docs

High Pressure Cast Iron Centrifugal Pump

(Size: 1.33 MB) Extension: pdf

California prop 65

AMT Pump Company is A Subsidiary of The Gorman-Rupp Company located in Mansfield, Ohio. AMT offers over 1000+ different standard model numbers of which 400+ are readily available and offered as QSP, Quick Ship Products. AMT manufactures and sells Industrial / Commercial pumps & accessories through authorized distributors.

Virtually every product AMT sells is engineered and designed by the company. Pump components are machined, assembled and tested at the Royersford, Pennsylvania facility.

AMT’s unique designs and patented products have made the company the industry leader for their high quality pumps.
