3E-12N-WG
-
Model Number:
503375
-
Product Name:3E-12N-WG
-
Manufacturer:
-
Series (12 Models):
3e
Model Number
503375
$232.17

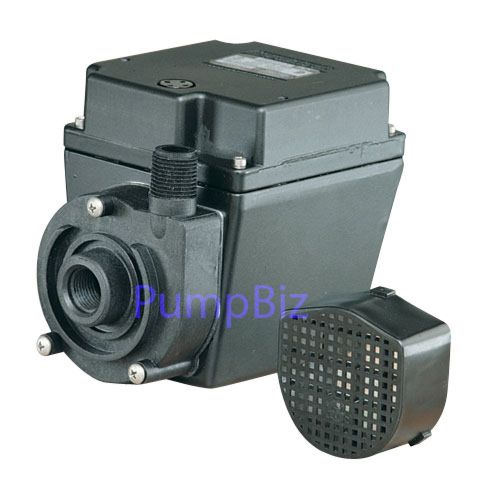

Little Giant 503375
Little GIANT Small Submersible pumps are designed for continous circulation of statuary fountains. Made with some of the industry's most durable materials, our pumps reach peak performance when completely submerged.. Same performance + to 1P807.
Applications:
- Ideal for continuous circulation of ponds or fountains Use submersible or in-line Specifications: 500 GPH @ 1' 115V 60HZ 220 Watts Features and Benefits: Epoxy coated cast aluminum construction Oil-filled for cooling Pre-screen included for protection
| Model Number | 503375 |
|---|---|
| Series | Little Giant submersible pumps |
| Max Flow (GPM.) | 8 |
| Max Flow GPH | 480 |
| TDH Maximum (Ft) | 17 |
| TDH Maximum (PSI) | 9 |
| Horsepower (IE .5, 1, 1.5, 20) | 0.0600 |
| Watts | 0.000000 |
| Inlet Connection Type | FNPT |
| Inlet (In.) | 0.5 |
| Outlet Connection Type | MNPT |
| Outlet (In.) | 0.5 |
| Wetted Materials | Aluminum, Epoxy coated, Nylon |
| Elastomers / O-ring | FKM |
| Voltage (V) | 115 |
| Voltage (Range) | 110-120 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 60 |
| Motor Amps (A) | 3.0000 |
| Speed (RPM.) | 1725 |
| Self Priming | Yes |
| Max Operating Temperature (F) | 120 |
| Max Particle Size (In) | 0.0600 |
| Viscosity | Milk 3.20 cp 40.00 ssu |
| Mechanical Seal | FKM |
| Mechanical Seal Type | Double |
| Approvals | UL |
| Drain | Yes |
| Port Rotation | Yes |
| Weight (Lbs) | 8.000000 |
| Warranty (YRS.) | 1 |
>
