2" Diesel Pump
-
Model Number:
336Z-96
-
Product Name:2" Diesel Pump
-
Manufacturer:
-
Series (18 Models):
2"
Model Number
336Z-96
23% Off
Special Price
$3,876.93
Regular Price
$5,034.98
AMT 336Z-96

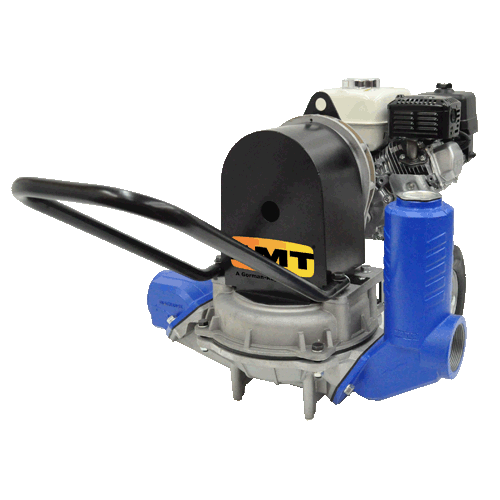

2" Mud pump. Powered by 4.8 HP Hatz diesel Engine, Electric Start. AMT
2" Diaphragm pumps features 2-stage, 44 to 1 gear reduction with a
large diameter output gear and heavy duty ball bearing
construction. Often referred to as Mud pumps, mudhog or Sludge
pumps, diaphragm pumps are designed to pump mud, slurry, sewage,
and thick water liquids that have the ability to flow. AMT
Diaphragm pumps are available with a choice of drivers to meet your
application requirements: Honda gasoline engines. Built-in molded
polyurethane flapper/check valve assures self-priming to 20 feet
after initial prime. Heavy duty gear box is designed to operate
pumps at 60 strokes per minute. Each unit includes a 2" NPT steel
suction strainer, two 2" NPT nipples, and wheel kit with 10"
semi-pneumatic transport wheels for portability. Pumps are designed
for use with non-flammable liquids which are compatible with pump
component materials. Mud Trash pumps Suction and discharge port
size cannot be reduced.
- Sand Cast Aluminum Construction for Portability and Durability
- Thermoplastic Rubber Diaphragm
- 2" NPT Suction and Discharge
- 1 5/8" Diameter Solids Handling Capability
- Modular Component Design Permits Easy Maintenance and Cleanout
- Driver DIESEL Engine Driven
- Delivers up to 50 GPM
- Maximum Temperature 180F
316F-95
See Curve "C" Suction and discharge port size cannot be reduced. Due to positive pumping action of diaphragm pumps, by all mfr's, the discharge is recommended to only be 25FT long unless oversized. Discharge can not be restricted. There is no relief valve.| Model Number | 336Z-96 |
|---|---|
| part number | 336Z-999-96 Mud pump |
| Series | AMT Mud Diaphragm Pumps |
| Max Flow (GPM.) | 50 |
| Max Flow GPH | 3000 |
| TDH Maximum (Ft) | 25 |
| TDH Maximum (PSI) | 11 |
| Horse Power (HP) | 5 |
| Horsepower (IE .5, 1, 1.5, 20) | 4.7000 |
| Watts | 0.000000 |
| inlet size | 2in |
| Inlet (In.) | 2 |
| Outlet (In.) | 1 |
| Wetted Materials | Aluminum |
| Elastomers / O-ring | Buna-Nitrile |
| Diaphragm | Santoprene |
| Motor Amps (A) | 2 |
| Motor | ODP |
| Self Priming | ---- |
| Suction Lift (FT.) | 5 |
| Max Operating Temperature (F) | 120 |
| Max Particle Size (In) | .2 |
| Viscosity | Catsup 3000.00 cp 20000.00 ssu |
| Length (In.) | 42.200000 |
| Mechanical Seal | No |
| Mechanical Seal Type | Double |
| Impeller Size (IN.) | b |
| Impeller Number (In.) | 3 |
| Other | amt pump |
| Rotation | cw |
| Drain | No |
| Country of Manufacture | United States |
| Weight (Lbs) | 50.000000 |
| Warranty (YRS.) | 1 |
Supporting Docs
Supporting Docs
AMT Pump Company is A Subsidiary of The Gorman-Rupp Company located in Mansfield, Ohio. AMT offers over 1000+ different standard model numbers of which 400+ are readily available and offered as QSP, Quick Ship Products. AMT manufactures and sells Industrial / Commercial pumps & accessories through authorized distributors.
Virtually every product AMT sells is engineered and designed by the company. Pump components are machined, assembled and tested at the Royersford, Pennsylvania facility.
AMT’s unique designs and patented products have made the company the industry leader for their high quality pumps.
