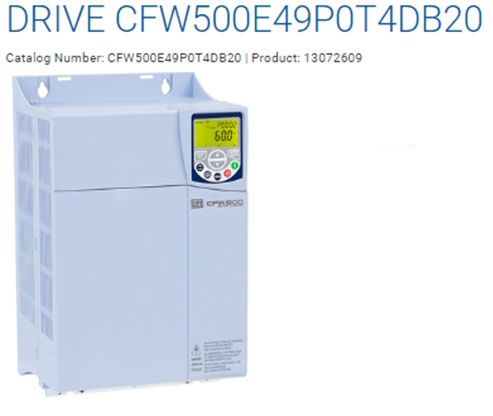

15HP VFD

Variable Frequency Drive VFD

Fast commissioning and infinite possibilities, make this Drive perfect for pump motors. IP20 enclosures include conformal coating protecting the electronic boards against moisture. Plug in modules for a variety of options. Human Machine interface allows you to display up to three variables.

• Power range: ¼ to 20 HP (0,18kW to 7,5kW)
• Single or three phase up to 3 HP
• Power supply voltage: 200-240 V and 380-480 V
• Scalar control (V / F) or Vector control (VVW)
• Plug-in modules: The optional communication network and I/O modules are easily installed, allowing interface of the standard VFD to each application Benefits: Selection and installation of several interface options allows the CFW500 to match a broad range of applications
• SoftPLC: Built-in PLC enables the VFD to do much more than just turn a motor. Programming flexibility combined with network and I/O options make the CFW500 a powerful part of an integrated systemBenefit: Often eliminates the need for an external PLC, reducing costs, optimizing space and simplifying the system
• Communication networks: CFW500 communications networks include: CANopen, DeviceNet, Profibus-DP, Modbus, Ethernet-IP, Profinet and Modbus-TCP/IPBenefits: Versatile integration with process networks for a wide range of applications
• Flash memory module: Quickly replicate the programming from one CFW500 to others without the need to apply power to the driveBenefits: Fast, easy and reliable programming for manufacturers that produce machines in large quantities.
• High overload capacity: The standard CFW500 is capable of 150% overload for one minute, repeatable every 6 minutes, based on ambient temperature of 50° CBenefits: Does not require oversizing the VFD
• Ambient temperature 50 ºC
• Conformal Coating as Standard for all circuit boards
• NEMA1 Protection (standard) and IP20 (optional)
• Factory Installed C2 or C3 RFI Filter (optional)
• Flash memory module: quickly replicate the programming from one CFW500 to others without the need to apply power to the drive
• Free SuperDrive G2 and WLP software download

Friendly Programming

• Oriented start-up: Step by step drive commissioning
• Soft keys: Fast, easy access to parameters
• Parameter group: Rapid access to specific parameters
