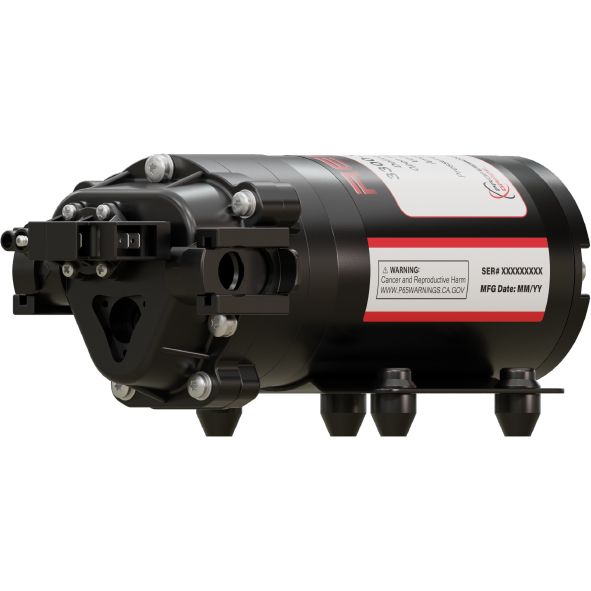

12v Demand Pump 2GPM
-
Model Number:
3323-1E1-82B
-
Product Name:12v Demand Pump 2GPM
-
Manufacturer:
-
Series (5 Models):
2.2 GPM
Demand
60 PSI
Viton
Santoprene
3/8″ FNPT
12 VDC
Model Number
3323-1E1-82B
$196.58
Remco 3323-1E1-82B
Demanding industrial pump environments require precise engineering and quality components the demand pump was designed with both. Demand pumps operated as a positive displacement pump which has a pressure switch built in. When flow is open the pump runs, when the discharge is closed or restricted to much the psi switch senses the set point and turns off the pump automatically. For its size, it is one of the most powerful and productive diaphragm pumps you can buy, pumping up to 2.0 gallons per minute. If your specifications call for low noise, smooth operation, continuous operation and high capacity, it will meet the challenge. 3/8"FNPT threads can easily be supplied with garden hose adapters. Typical Applications: Heavy Duty Spraying, high Pressure Cleaning, agricultural Spraying- Glyphosate Roundup, Lexar EZ or Atrazine, starter Fertilizer, de-icing, roof Cleaning *Santoprene- EPDM-based thermoplastic elastomer and is resistant to mild acids, some solvents and bases.
12V On-Demand Sprayer Diaphragm Pump is a premium-quality on-demand diaphragm pump that upgrades your sprayer with innovative components and engineering for superior spot or broadcast spraying performance. Fits all brand name sprayers.
Remco's 3300 series 2.2 GPM Sprayer pump is the Professional Grade performance leader. This sprayer pump utilizes a 60 PSI pressure setting and Remco's signature sealed 12 volt electric motor allowing the pump to operate in the harshest environments. The 3300 Series is Made in the U.S.A and engineered with Professional Grade components able to withstand long and continuous duty cycles of Agricultural spray applications. Utilizing heavy 14 AWG wire leads the Remco 3300 Series has low operating temperatures is extremely efficient. This 2.2 GPM pump's materials of construction are compatible with most common agricultural spray chemical including herbicides, fertilizers, and insecticides. The Professional Grade 3300 Series Spray pump is perfect for any demanding spraying application.| Model Number | 3323-1E1-82B |
|---|---|
| Series | 3300 SERIES |
| Max Flow (GPM.) | 2 |
| Max Flow GPH | 120 |
| TDH Maximum (Ft) | 138 |
| TDH Maximum (PSI) | 60 |
| Inlet Connection Type | FNPT |
| Inlet (In.) | 0.375 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 0.375 |
| Wetted Materials | PolyPro-GF |
| Elastomers / O-ring | FKM |
| Diaphragm | Santoprene |
| Voltage (V) | 12DC |
| Voltage (Range) | 12/24/36 VDC |
| Motor Amps (A) | 6 |
| Motor | TENV |
| Self Priming | Yes |
| Suction Lift (FT.) | 14 |
| Max Operating Temperature (F) | 140 |
| Viscosity | SAE 10 oil 88.00 cp 500.00 ssu |
| Mechanical Seal | No |
| Other | See full performance chart |
| Cord Size | 14/2 |
| Cord Length (Ft.) | 1 |
| Drain | No |
| Port Rotation | No |
| Country of Manufacture | United States |
| Weight (Lbs) | 8.000000 |
| Warranty (YRS.) | 1 |
| GPM Of Water At 90 Feet Of Head | 1.4 |
>
Remco Professional Grade pumps.
Quality starts with our vision to produce fluid handling equipment that excels in performance and reliability, and surpasses the end user’s expectations.
Industry professionals choose Remco first because of our commitment to pro-level quality, engineering and customer service.
The Remco PowerRV Series provides a solution for every RV fluid pumping challenge, from potable water to gray and black water.
Electric diaphragm demand pumps for fluid handling applications such as purification, light industrial, food and beverage, agricultural, and automotive.
Available in 12VDC, 24VDC, 115VAC
