Vertical Multistage Pump

Model Number:

BVM4-60-303
Product Name:

Vertical Multistage Pump
Manufacturer:

Berkeley Pumps
Series :

Berkeley B Pump w/ Electric Motor

3HP 3ph

Model Number

BVM4-60-303

Specifications

$1,343.88 $1,343.88 To see our price, add this item to your cart. You can always remove it later. What's this?

Email to a Friend Price Match

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Berkeley BVM4-60-303

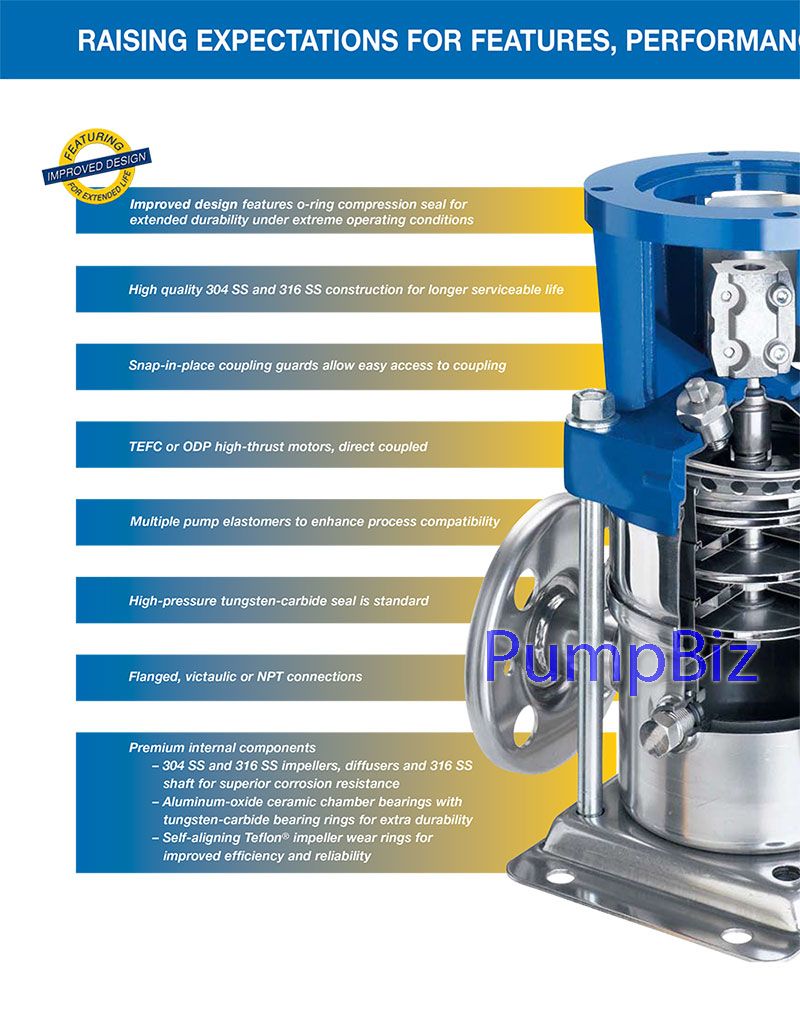

BMV series Features: High efficiency.Low noise.Compact design.Easy to service.Cartridge type seal.Boiler water supply and condensing system. Water treatment, filtration system. Food and beverage industries. Pressure boosting in high-rise buildings. Farmland irrigation, nursery irrigation and golf court irrigation. Industry cleaning system. Liquid conveying, circulation and boosting. Hot and cool water.

More Information
Model Number	BVM4-60-303
Series	Berkeley B Pump w/ Electric Motor
Max Flow (GPM.)	35
Max Flow GPH	2100
TDH Maximum (Ft)	280
Horse Power (HP)	3
Horsepower (IE .5, 1, 1.5, 20)	3.0000
Inlet (In.)	2.5
Outlet Connection Type	Flange
Outlet (In.)	2.5
Wetted Materials	Carbon
Elastomers / O-ring	FKM
Voltage (V)	230/460
Voltage (Range)	220-240/460-480
Phase (Ø)	Three (3)
Motor Amps (A)	15
Motor	TEFC
Speed (RPM.)	various
Suction Lift (FT.)	7
Max Particle Size (In)	0.6
Viscosity	Glycerine 880.00 cp 5000.00 ssu
Stages	6
Length (In.)	27.0000
Mechanical Seal Face	Carbon-ceramic
Cord Length (Ft.)	0
Weight (Lbs)	152.000000
Warranty (YRS.)	1
GPM Of Water At 300 Feet Of Head	180
GPM Of Water At 400 Feet Of Head	125
