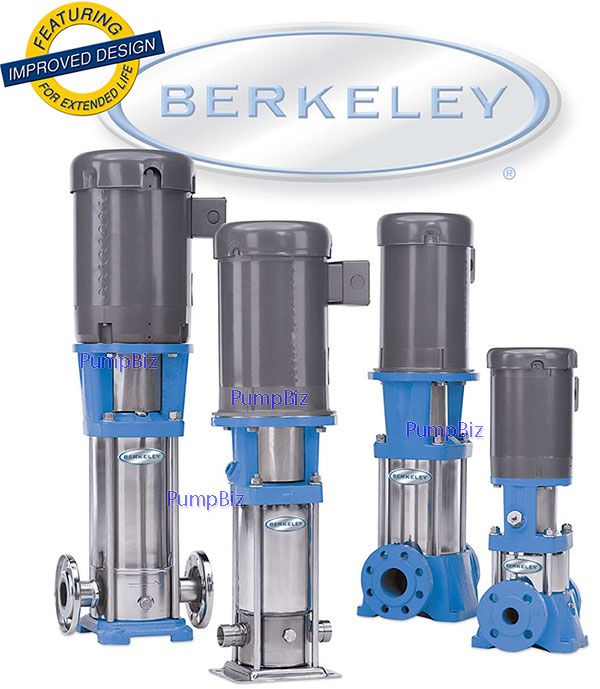

Vertical Multistage Pump
-
Model Number:
BVM20-4
-
Product Name:Vertical Multistage Pump
-
Manufacturer:
-
Series (2 Models):
10HP 3ph
Model Number
BVM20-4
Berkeley BVM20-4
The Berkeley Vertical Multistage Pump BVM20-4 (BVM20-4) is a vertical multistage pump engineered for pressure-boosting and high-head applications where compact footprint and efficiency matter. Built with 10HP 3-Phase, high pressure booster, it's a reliable choice for water systems that need consistent pressure across multiple stages.
| Model Number | BVM20-4 |
|---|---|
| Series | Vertical Multi-Stage Water Pump BVM |
| Max Flow (GPM.) | 150 |
| Max Flow GPH | 9000 |
| TDH Maximum (Ft) | 300 |
| Horse Power (HP) | 10 |
| Horsepower (IE .5, 1, 1.5, 20) | 10.0000 |
| inlet size | 2 ½" |
| Inlet (In.) | 2.5 |
| Outlet Connection Type | Flange |
| Outlet (In.) | 2.5 |
| Wetted Materials | Carbon |
| Elastomers / O-ring | FKM |
| Voltage (V) | 230/460 |
| Voltage (Range) | 220-240/460-480 |
| Phase (Ø) | Three (3) |
| Motor Amps (A) | 15 |
| Motor | TEFC |
| Speed (RPM.) | various |
| Motor Frame | 213/5TC |
| Suction Lift (FT.) | 7 |
| Max Particle Size (In) | 0.6 |
| Viscosity | Glycerine 880.00 cp 5000.00 ssu |
| Stages | 4 |
| Length (In.) | 37.0000 |
| Mechanical Seal | No |
| Mechanical Seal Face | Carbon-ceramic |
| Cord Length (Ft.) | 0 |
| Weight (Lbs) | 152.000000 |
| Warranty (YRS.) | 1 |
| GPM Of Water At 300 Feet Of Head | 180 |
| GPM Of Water At 400 Feet Of Head | 125 |
>
