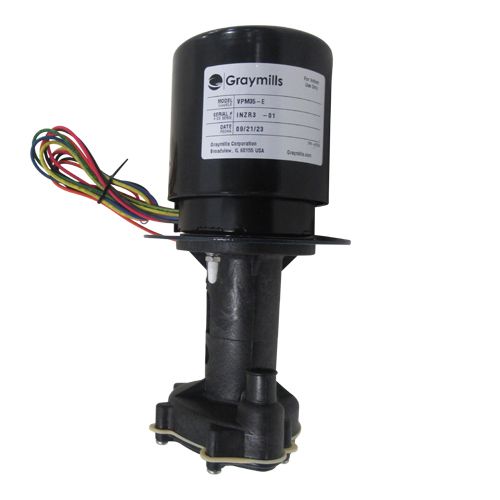

Vertical Immersion Centrifugal Pump
-
Model Number:
VPM38-E
-
Product Name:Vertical Immersion Centrifugal Pump
-
Manufacturer:
-
Series (6 Models):
Model Number
VPM38-E
$522.00
Graymills VPM38-E
Specially designed to withstand highly abrasive and/or caustic liquids. The VPM38-E's High-strength glass-filled thermoplastic construction provides a cost-effective alternative to brass or stainless steel. Includes permanently lubricated sealed ball bearing motors with guards in pump column to protect motor from splashing and vapors. A labyrinth chamber above the volute eliminates splashing at low liquid levels Celcon, a tough glass-filled thermoplastic combining high mechanical strength, stiffness and stability through a broad range of temperatures, is used in all VP Series pumps and impellers. Can be combined with tanks to provide a complete, ready-to-install pumping system.
| Model Number | VPM38-E |
|---|---|
| Series | VP Industrial Pump Series |
| Max Flow (GPM.) | 11 |
| Max Flow GPH | 660 |
| Minimum Flow (GPM.) | 1 |
| TDH Maximum (Ft) | 13 |
| TDH Maximum (PSI) | 5.627 |
| Horsepower (IE .5, 1, 1.5, 20) | 1/15 |
| Outlet Connection Type | Barb |
| Outlet (In.) | .63 |
| Wetted Materials | Celcon |
| Voltage (V) | 115/230 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 50/60 |
| Motor | TEFC |
| Speed (RPM.) | 300 |
| Shaft | 316SS |
| Coupling | Y |
| Other | Replaces VPJ35 and VPM35 |
| Weight (Lbs) | 15.000000 |
>
