Trash Pump Electric
-
Model Number:
58-73M8 P3 58-0117A D
-
Product Name:Trash Pump Electric
-
Manufacturer:
-
Series (14 Models):
Trash pump 7.5HP Electric motor, TEFC 230/460v, Corrosion resistant
Model Number
58-73M8 P3 58-0117A D
$3,712.20

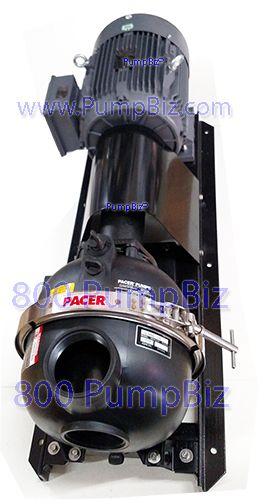

Pacer 58-73M8 P3 58-0117A D
Self-priming, light weight Trash pump, long coupled motor driven.
Industrial TOTALLY ENCLOSED FAN COOLED electric motor driven. Pump
casing is made or rugged glass reinforced polyester, SS fasteners,
urethane coated metal impeller and volute resist wear. Pressurized
oil lubrication system protects hard silicon carbide shaft seal
faces. Includes built in check valve maintains initial prime.
Mounted on a rigid steel base plate, cast iron bearing pedestal, coupling guard, flex coupling. 58-0117AD
| Model Number | 58-73M8 P3 58-0117A D |
|---|---|
| Series | Trash Pumps Pacer pumps dewatering 360gpm |
| Max Flow (GPM.) | 380 |
| Max Flow GPH | 22800 |
| TDH Maximum (Ft) | 73 |
| TDH Maximum (PSI) | 31 |
| TDH BEP (FT.) | 45.000000 |
| Horse Power (HP) | 7 1/2 |
| Horsepower (IE .5, 1, 1.5, 20) | 7.5000 |
| Inlet Connection Type | FNPT |
| inlet size | 3" |
| Inlet (In.) | 3 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 3 |
| Wetted Materials | 316SS, Polyester |
| Elastomers / O-ring | Buna-Nitrile |
| Voltage (V) | 230/460 |
| Voltage (Range) | 220-240/460-480 |
| Phase (Ø) | Three (3) |
| Motor Frequency | 60 |
| Motor | TEFC |
| Speed (RPM.) | 3450 |
| Motor Frame | 182/4TC |
| Self Priming | Yes |
| Suction Lift (FT.) | 25 |
| Max Operating Temperature (F) | 120 |
| Max Particle Size (In) | 1 |
| Viscosity | Vegetable Oil 34.60 cp 200.00 ssu |
| Shaft | 316SS |
| Length (In.) | 36.000000 |
| Mechanical Seal Face | SiC |
| Mechanical Seal Type | Single |
| Impeller Number (In.) | M |
| Coupling | Y |
| Rotation | CW facing drive side of pump |
| Impeller Material | Urathane coated steel, non-clog |
| Drain | Yes |
| Port Rotation | Yes |
| Country of Manufacture | United States |
| Weight (Lbs) | 230.000000 |
| Warranty (YRS.) | 1 |
>
