Sump pump Pro grade 1/2HP
-
Manufacturer:
-
Series (35 Models):
-

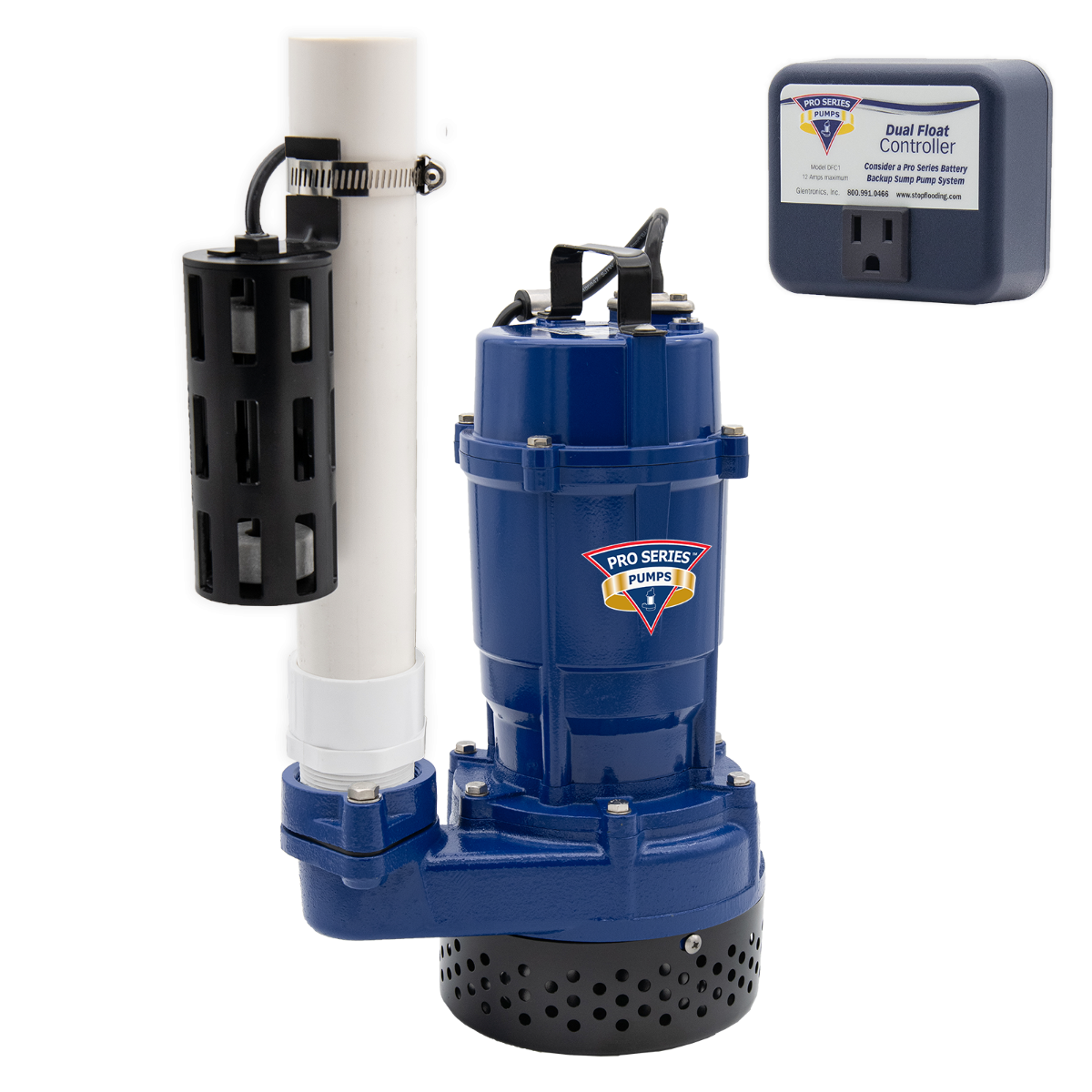

Product Name:Sump pump Pro grade 1/2HP
-
Model Number:ST1050-DFC1
1/2HP 5300GPH
Model Number
ST1050-DFC1
$310.00
Pro Series ST1050-DFC1
Sump pump Pro grade 1/2HP, Industrial grade sump pumps for the
residential market. Energy Star sump pump.
Pro Series submersible pumps. Sump pump, submersible dewatering pump. Not all sump pumps are created equal! Includes Dual Float and deluxe controller DFC1. ST1050 includes 2” to 1 ½” reducer.
- High flow 3630GPH / 60 GPM @ 10FT comprable to others 1/2HP
- Continuous duty construction, sump, ponds, fountains
- Cast iron and cast aluminum housing with primed and double baked paint
- Permanent Split Capacitor PSC motor for high efficiency
- Stainless steel shaft
- Upper and lower sealed ball bearings
- Dual carbon ceramic seals protect motor
- No oil to leak, water cooled motor
- Dynamically balanced cast iron impeller
- Will fit in a 10" diameter sump
- Energy Efficient! Will save you an average of $67 per year*
- 10' cord length
- Includes Dual Float Controller patent pending
- Energy efficient motor for being "green" and includes thermal protector. The ST1050 pumps 6.3 gallons per watt hour (G/Wh) used, which is 172% more efficient than the competitive average of 1/2 HP sump pumps.
*assumes $0.12 per kilowatt hour, average 1/3 HP pump at 9.5 amps, 5 minutes run time per hour
Model Number | ST1050-DFC1 |
---|---|
Series | Pro Series submersible pumps |
Max Flow (GPM.) | 88 |
Max Flow GPH | 5280 |
TDH Maximum (Ft) | 36 |
TDH Maximum (PSI) | 17 |
Horse Power (HP) | 1/2 |
Horsepower (IE .5, 1, 1.5, 20) | 0.5000 |
Outlet Connection Type | FNPT |
Outlet (In.) | 2 |
Wetted Materials | 416SS, Aluminum, Cast Iron |
Elastomers / O-ring | Buna-Nitrile |
Voltage (V) | 115 |
Voltage (Range) | 110-120 |
Phase (Ø) | Single (1) |
Motor Frequency | 60 |
Motor | Hermetically Sealed |
Self Priming | Yes |
Max Operating Temperature (F) | 104 |
Viscosity | Milk 3.20 cp 40.00 ssu |
Shaft | 416SS |
Mechanical Seal | No |
Mechanical Seal Face | Carbon-ceramic |
Mechanical Seal Type | Double |
Motor Bearings | Ball |
Other | The Dual Float switch:
Dim. 16.75"H x 10"D Features One year warranty when used as a pond pump. |
Approvals | cUL, UL |
Impeller Material | Cast Iron, semi-open |
Cord Size | 16/3 |
Cord Length (Ft.) | 10 |
Duty | Continuous |
Drain | Yes |
Port Rotation | Yes |
Gallons Per Watt Hour | 6.300000 |
Weight (Lbs) | 26.000000 |
Warranty (YRS.) | 1.5 |
GPM Of Water At 10 Feet Of Head | 60 |
