Submersible Sewage Pump Tethered float
-
Model Number:
SRM4P-1
-
Product Name:Submersible Sewage Pump Tethered float
-
Manufacturer:
-
Series (5 Models):
10' cord/ 115v
Model Number
SRM4P-1
$585.00

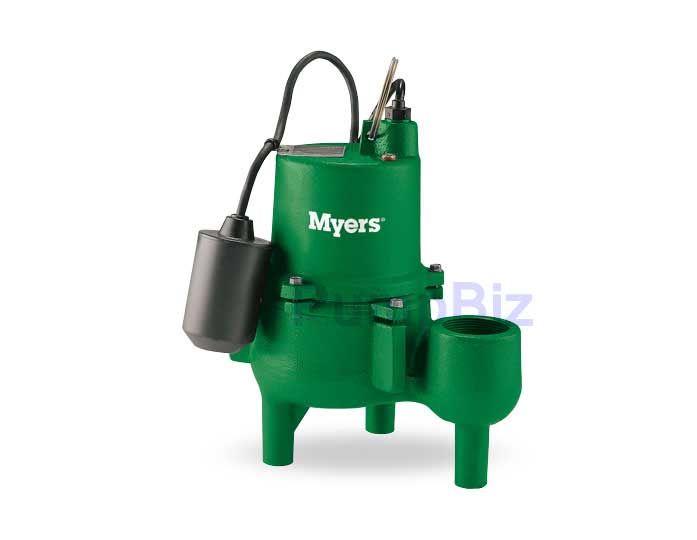

Myers SRM4P-1
4/10HP sewage pumps for residential septic tank sewage. Free flow
of liquids, solids up to 2" diameter. SRM4P-1, SRM4P1C &
SRM4P2C have piggy-backed mechanical float level controls for fully
automatic operation. SRM4M1C & SRM4M2C can be directly plugged
into grounded receptacle for manual operation. 10' power cord.
SRM4V has vertical style float switch.
- UL, CSA, SSPMA and ETL listed.
- Oil-filled motor for maximum heat dissipation, continuous bearing lubrication.
- Recessed vortex impeller for free flow of liquids, solids up to 2” diameter.
- Rotary shaft seal has carbon and ceramic faces for positive seal.
- Thermal overload protection with automatic reset.
| Model Number | SRM4P-1 |
|---|---|
| Series | SRM4 Sewage Pump 4/10hp 95gpm |
| Max Flow (GPM.) | 95 |
| Max Flow GPH | 5700 |
| TDH Maximum (Ft) | 19 |
| TDH Maximum (PSI) | 9 |
| Horse Power (HP) | 4/10 |
| Horsepower (IE .5, 1, 1.5, 20) | 0.4000 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 2 |
| Wetted Materials | CI-Plastic |
| Elastomers / O-ring | Buna-Nitrile |
| Voltage (V) | 115 |
| Voltage (Range) | 110-120 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 60 |
| Motor | Hermetically Sealed |
| Speed (RPM.) | 1725 |
| Self Priming | Yes |
| Max Operating Temperature (F) | 140 |
| Viscosity | Water 1.00 cp 31.00 ssu |
| Mechanical Seal | TYPE 11A |
| Mechanical Seal Face | Carbon-ceramic |
| Mechanical Seal Type | Single |
| Other | 10' cord, thermally protected. |
| Approvals | UL |
| Impeller Material | Plastic, Votex |
| Cord Length (Ft.) | 10 |
| Drain | Yes |
| Port Rotation | Yes |
| Weight (Lbs) | 40.000000 |
| Warranty (YRS.) | 1 |
| GPM Of Water At 10 Feet Of Head | 50 |
