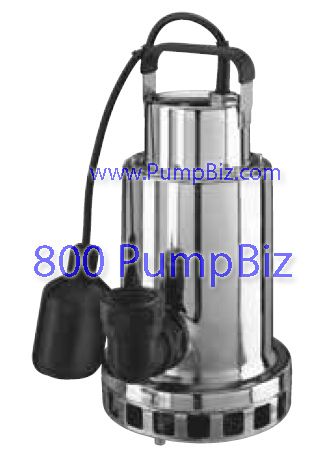

Stainless Steel submersible Utility pump

The new robust DS75P1 Submersible Pump is designed for draining pools and utility applications, with the capability to pump water down to 1 3/8 inches in depth. The pump features improved flow rates, a superior stainless steel casing, suctions strainer, impeller and shaft for greater corrosion resistance and longer service life. Debris and stones up to 3/4 inch are able to pass through the pump. The pump features a 1 1/4 inch discharge port for faster draining. A float switch and discharge port adaptors are also included. Features

• 115V, 60 Hz, single phase, permanent split capacitor motor.
• Automatic thermal overload protection.
• Clog-resistant cast stainless steel impeller.
• Accommodates water temperatures ranging from 32 degrees F to 104 degrees F.
• Permanently lubricated ball bearings.
• Equipped with 15-foot, 18/3 grounding-type power cord.
• Convenient, top-mounted handle.
• Ceramic shaft seal.
• Acceptable pH Range – 5-9

The DS75P1 Submersible Pump is equipped with an automatic resetthermal protector to help prevent premature failure caused by overheating.If the internal motor temperature rises to unsafe levels, the switch willprotect the motor by causing it to stop. When the motor has sufficientlycooled, the switch will reset automatically and restart the motor, allowingyou to resume pumping.

The included external float switch allows for optional automatic operationof the DS75P1 pump. It is easily installed by plugging directly into anoutlet and connecting the pump cord to the opposite end of the switch.The pump is then automatically activated when the surrounding waterraises the float switch to a 45° angle from the handle. Once the waterlevel and float switch return to its original position, the pump isautomatically turned off.
