Stainless Steel Dewatering Pump
-
Model Number:
EPD-5MT4
-
Product Name:Stainless Steel Dewatering Pump
-
Manufacturer:
-
Series (16 Models):
1/2HP 460V HS
Model Number
EPD-5MT4
$1,817.50

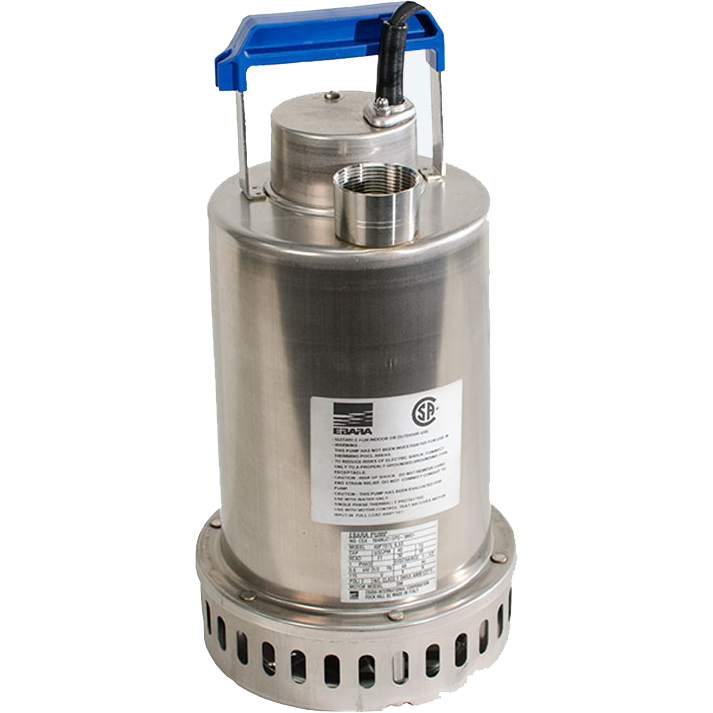

EBARA EPD-5MT4
1/2HP Ebara Stainless Steel Series Drainage Sump Pumps offer you a
complete comprehensive range of submersible drainage pumps for
pumping slurry, dirty and semi-dirty water. Never before have
benefits this large been offered in a drainage pump. The
versatility and rugged construction of these pumps allow for
confident use in fixed or mobile service with either automatic or
manual operation.
- Constructed of high quality, corrosion resistant 304 stainless steel (Note: Optima has Noryl impeller)
- Oil lubricated double mechanical shaft seal
- Air filled, continuous duty motors rated for up to 20 starts per hour
- Built-in thermal protection with automatic reset (Single Phase Only)
- Built to operate with full or partial submergence(Optima pumps are available with an optional Low Suction Device)
- Vertical discharge allows pumpage to carry heat away from the motor
| Model Number | EPD-5MT4 |
|---|---|
| Series | Dewatering Stainless Pumps Pro-Drainer |
| Max Flow (GPM.) | 70 |
| Max Flow GPH | 4200 |
| TDH Maximum (Ft) | 42 |
| TDH Maximum (PSI) | 18 |
| TDH BEP (FT.) | 30.000000 |
| Horse Power (HP) | 1/2 |
| Horsepower (IE .5, 1, 1.5, 20) | 0.5000 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 1.5 |
| Wetted Materials | 304SS |
| Elastomers / O-ring | FKM |
| Voltage (V) | 460 |
| Voltage (Range) | 460-480 |
| Phase (Ø) | Three (3) |
| Motor Frequency | 50/60 |
| Motor | Hermetically Sealed |
| Self Priming | No |
| Max Operating Temperature (F) | 122 |
| Viscosity | SAE 30 oil 352.00 cp 2000.00 ssu |
| Shaft | 304SS |
| Mechanical Seal | OIL LUBED |
| Mechanical Seal Face | SiC |
| Mechanical Seal Type | Double |
| Other | Manual operation. 20' cable length |
| Drain | No |
| Port Rotation | No |
| Weight (Lbs) | 27.000000 |
>
EBARA pumps - Electric Stainless Steel and CI pumps - End Suction, Self-priming, multi-stage - Vertical, Sump, Effluent, Sewage, fountain submersibles. Pumps for water and chemicals. Ebara, pumps are found world wide. For Ebara parts use the PumpBiz search our parts database or call.
