Munro MULP150B-Sic Sprinkler pump Sprinkler pump Sprinkler pump Sprinkler pump
Munro MULP150B-Sic Sprinkler pump

Scroll Down For Product Details

Manufacturer: Munro
Series (11 Models):

Sprinkler Irrigation Pump LP

Product Name:

Sprinkler pump

Model Number:

MULP150B-Sic

Gallons Per Hour: 4680 (78 GPM)
Voltage: 115/208-230
Horsepower: 1 1/2

Quick Overview

1-1/2HP 115/230v SiC

Details

Residential self-priming pump. Easy Service Design Economical Construction.

Motors are wired for 230v (high) as standard. To use on 115v (low) follow motor name plate wiring diagram. Motors are Lincoln brand. Pump rotation is CCW from pump-end. Click here for an alternate pump

Additional Information

Model Number MULP150B-Sic
Series Sprinkler Irrigation Pump LP
Warranty (YRS.) 1
Max Flow (GPM.) 78
Max Flow GPH 4680

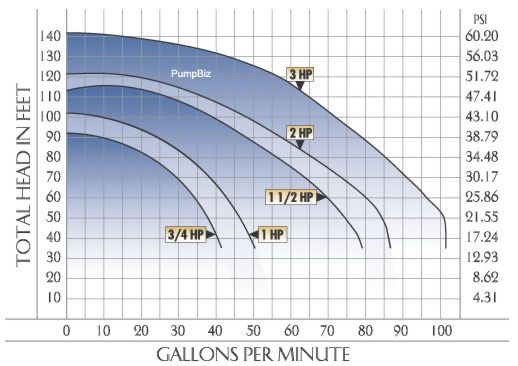

TDH Maximum (Ft) 115
TDH Maximum (PSI) 49
TDH BEP (FT.) 90
Horsepower 1.5
Inlet Connection Type FNPT
Inlet (In.) 2
Outlet Connection Type FNPT
Outlet (In.) 1.5
Wetted Materials Brass, CI
Elastomers / O-ring Buna-Nitrile
Voltage (V) 115/208-230
Phase (Ø) Single(1)
Motor Frequency 60
Motor ODP
Speed (RPM.) 3450
Motor Frame 56J thrd
Self Priming Yes
Suction Lift (FT.) 15
Max Operating Temperature (F) 180
Viscosity Milk 3.20 cp 40.00 ssu
Shaft 304SS
Length (In.) 17.75
Mechanical Seal Face SiC
Mechanical Seal Type Single
Applications Contractor, Coolant, Fire, Fountain, Irrigation, Machine Tool, Marine, Parts Washer, Pond, Self-Priming
Other Includes drain cocks on upper & lower casing chambers,2 plugs 3/4" on top prime ports and plug on sensor port.

Motors are wired for 230v (high) as standard. To use on 115v (low) follow motor name plate wiring diagram. Motors are Lincoln brand. Pump rotation is CCW from pump-end.

Impeller Material Brass
Cord Length (Ft.) 0
Drain Yes
Port Rotation Yes
Country of Manufacture United States
Weight (Lbs) 74
Time to Ship (DAYS) 1 day
