Small Twin Plunger Pump Hollow Shaft
-
Model Number:
53703
-
Product Name:Small Twin Plunger Pump Hollow Shaft
-
Manufacturer:
-
Series (1 Models):
piston
Model Number
53703
$839.23
Hypro 53703

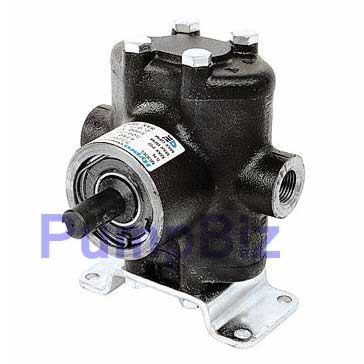

Hypro Corporation's Twin plunger pumps with torque arm are used in
a variety of spraying and pressure cleaning applications, as well
as hydrostatic testing. These heavy-duty pumps are ideal for fluid
handling of water and nonabrasive or general use chemicals. All
pumps are constructed from cast iron materials. They feature SS
valves and ball bearing. Mount to a gasoline engine with 5/8" dia.
shaft. See performance curve for required HP rating at various duty
points.
- Nonabrasive and general use chemical compatibility
- Compact, lightweight and easy to install
- Buna-N Seals
- They are bi-rotational
- Fluid temperatures up to 180ï½°F
- Max rated RPM: 3100
- Cast iron pump with torque arm
- Plungers: Polished Ceramic
- 5/8" ID Hollow Shaft
- This requires a "special order" gas engine with a 5/8" shaft
- Requires a pulsation dampener (a 3375-0012 pulse hose) on the discharge side (click here)
| Model Number | 53703 |
|---|---|
| Series | Twin Piston Pumps 5300 Hypro 3gpm |
| Max Flow (GPM.) | 2 |
| Max Flow GPH | 120 |
| TDH Maximum (Ft) | 2310 |
| TDH Maximum (PSI) | 1000 |
| Inlet Connection Type | FNPT |
| inlet size | Less than 1in |
| Inlet (In.) | 0.5 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 0.5 |
| Wetted Materials | Cast Iron |
| Elastomers / O-ring | Buna-Nitrile |
| Motor | Gas Engine |
| Self Priming | Yes |
| Max Operating Temperature (F) | 180 |
| Other | Inlet requirements: pressure feed 20-100psi |
| Drain | No |
| Port Rotation | No |
| Weight (Lbs) | 12.000000 |
| Warranty (YRS.) | 1 |
>
