SH 3Plex GB 152.9hp
-
Model Number:
SH2601
-
Product Name:SH 3Plex GB 152.9hp
-
Manufacturer:
-
Series (12 Models):
Model Number
SH2601
$53,059.85
General SH2601
SH Triplex Plunger Pump. A heavy-duty, high pressure industrial
pump with a stainless steel manifold and internal gearbox.
- Max. Inlet Pressure: 100 PSI
- Max. Fluid Temp.: 86ï½°F
- Inlet Port Thread: 1 1/2" BSP-F
- Discharge Port Thread: 3/4" BSP-F
- Shaft Diameter: 1.969 in.

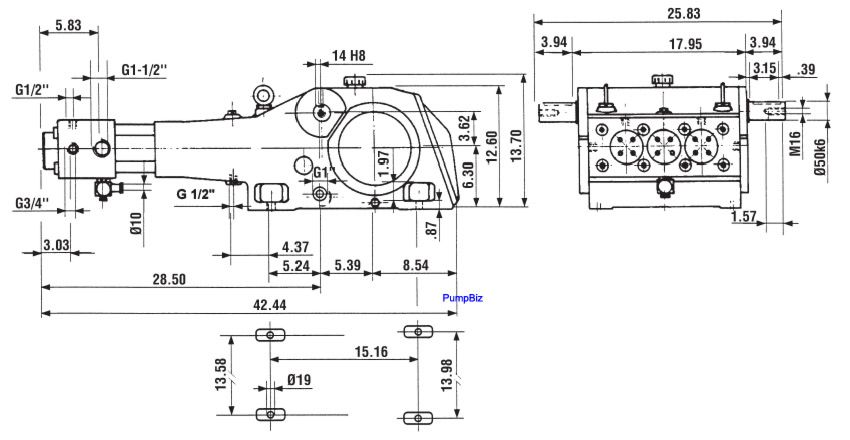

- Pump Dimensions: 42.4" x 25.8" x 13.7"
- Crankcase Oil Capacity: 467oz.
- Stroke: 3.543 in.
- Click here to view more information on this pump
| Model Number | SH2601 |
|---|---|
| Series | SS Heavy-Duty Industrial SH Triplex Plunger 11.3-25.9 gpm 8700-20300 psi |
| Max Flow (GPM.) | 19 |
| Max Flow GPH | 1140 |
| HP Required | 152.9000 |
| inlet size | 1 ½" |
| Inlet (In.) | 1.5 |
| Outlet (In.) | 0.75 |
| Wetted Materials | 316SS |
| Max Operating Temperature (F) | 86 |
| Mechanical Seal | No |
| Mechanical Seal Type | Double |
| Drain | Yes |
| Port Rotation | Yes |
| Weight (Lbs) | 840.000000 |
| Warranty (YRS.) | 5 |
>
