Rotary Vane Hand Pump
-
Model Number:
SD62
-
Product Name:Rotary Vane Hand Pump
-
Manufacturer:
-
Series (6 Models):
Cast Iron
Model Number
SD62
$62.00

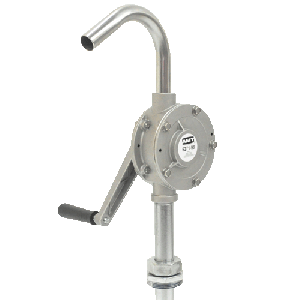

Fill-Rite SD62
Rotary hand drum barrel pump.
This pump is easy to use. It pumps about 8.5 gallons per 100 revolutions
APPLICATIONS Light-Viscosity oils, gasoline, diesel fuel, anti-freeze glycol and other non-corrosive fluids.
| Model Number | SD62 |
|---|---|
| Series | Fuel transfer pumps |
| Max Flow (GPM.) | 9 |
| Max Flow GPH | 540 |
| inlet size | 1in |
| Inlet (In.) | 1 |
| Outlet (In.) | 1 |
| Wetted Materials | Cast Iron |
| Self Priming | Yes |
| Suction Lift (FT.) | 3 |
| Max Operating Temperature (F) | 80 |
| Viscosity | SAE 30 oil 352.00 cp 2000.00 ssu |
| Mechanical Seal | No |
| Mechanical Seal Type | Single |
| Coupling | Y |
| Approvals | CARB, ETL, SSPMA |
| Pump Bearing | Rulon |
| Low Oil Shutdown | Yes |
| Impeller Material | plastic |
| Duty | Continouos |
| Drain | Yes |
| Port Rotation | Yes |
| Weight (Lbs) | 10.000000 |
>
