Portable Marine Fire Pump 64HP
-
Model Number:
HE 64RPM Hercules
-
Product Name:Portable Marine Fire Pump 64HP
-
Manufacturer:
-
Series (12 Models):
Model Number
HE 64RPM Hercules
$28,905.41

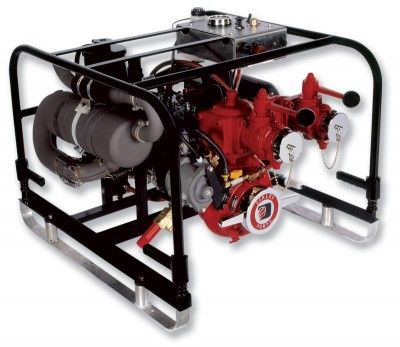

Darley HE 64RPM Hercules
Darley Marine Fire Pump has always been a leader in portable fire pump design. Includes metal frame, control panel, jet coated exhaust, painted engine, 316SS shaft and hard anodized pump casing.The High-Volume Fire Pump is easy-starting, portable.
Features
- Rotax 582: Liquid-cooled, 64 HP, 2 cycle without injection, 12-volt electric starter, recoil rope start back-up, 6 gal. fuel tank, hose and adapter
-
- Rotax 582: Liquid-cooled, 64 HP, 2 cycle without injection, 12-volt electric starter, recoil rope start back-up, 6 gal. fuel tank, hose and adapter -
- 170W lighting and recharging coil
- Aluminum alloy casing, hard anodized
- Bronze impeller and seal ring
- Stainless steel impeller shaft
- Mechanical seal
- Belt driven rotary primer
- Heat exchanger with thermal protection circuit
- Wrap around frame with fold out handles
- Loss of prime shutdown
- Pressure governor
- Vernier throttle
- 4" NH suction with screen • 2-1 /4 turn self-locking 21 /2" NH discharge ball valves with caps
- Available with wheels
- Dimensions: 24'x30"x26"
Connection caps and fittings, hoses, primer, strainer are options.
| Model Number | HE 64RPM Hercules |
|---|---|
| Series | Fire Pump High Volume |
| Max Flow (GPM.) | 575 |
| Max Flow GPH | 34500 |
| TDH Maximum (Ft) | 250 |
| TDH Maximum (PSI) | 100 |
| Horsepower (IE .5, 1, 1.5, 20) | 64.0000 |
| Inlet (In.) | 4 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 2.5 |
| Wetted Materials | Aluminum |
| Elastomers / O-ring | Buna-Nitrile |
| Motor | Gas Engine |
| Speed (RPM.) | 3450 |
| Self Priming | Yes |
| Max Operating Temperature (F) | 140 |
| Viscosity | Vegetable Oil 34.60 cp 200.00 ssu |
| Mechanical Seal Face | Carbon-ceramic |
| Mechanical Seal Type | Single |
| Coupling | N |
| Other | Heat exchanger with thermal protection circuit Wrap around frame with fold out handles Loss of prime shutdown Pressure governor Vernier throttle |
| Impeller Material | Bronze |
| Duty | Continuous |
| Drain | Yes |
| Port Rotation | No |
| Country of Manufacture | United States |
| Weight (Lbs) | 225.000000 |
>
