Portable Fire Pumps 64HP

Model Number
HE 64RP Hercules
Specifications
$25,010.61
Email to a Friend Price Match
Add to Wish List Add to Compare
Email

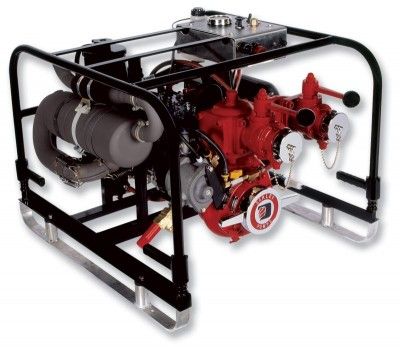

he64_20141031.jpg Portable Fire Pumps Honda 64HP

Darley HE 64RP Hercules

Darley Fire Pump has always been a leader in portable fire pump design. Includes metal frame, control panel, aluminum alloy pump casing.The High-Volume Fire Pump is easy-starting, portable.

Features

  • Rotax 582: Liquid-cooled, 64 HP, 2 cycle without injection, 12-volt electric starter, recoil rope start back-up, 6 gal. fuel tank, hose and adapter -
  • 170W lighting and recharging coil
  • Aluminum alloy casing
  • Bronze impeller and seal ring
  • Stainless steel impeller shaft
  • Mechanical seal
  • Belt driven rotary primer
  • Heat exchanger with thermal protection circuit
  • Wrap around frame with fold out handles
  • Loss of prime shutdown
  • Pressure governor
  • Vernier throttle
  • 4" NH suction with screen • 2-1 /4 turn self-locking 21 /2" NH discharge ball valves with caps
  • Available with wheels
  • Dimensions: 24'x30"x26"

Connection caps and fittings, hoses, primer, strainer are options.

More Information
Model Number HE 64RP Hercules
Series Fire Pump High Volume
Max Flow (GPM.) 575
Max Flow GPH 34500
TDH Maximum (Ft) 250
TDH Maximum (PSI) 100
Horsepower (IE .5, 1, 1.5, 20) 64.0000
Inlet (In.) 4
Outlet Connection Type FNPT
Outlet (In.) 2.5
Wetted Materials Aluminum
Elastomers / O-ring Buna-Nitrile
Motor Gas Engine
Speed (RPM.) 3450
Self Priming Yes
Max Operating Temperature (F) 140
Viscosity Vegetable Oil 34.60 cp 200.00 ssu
Mechanical Seal Face Carbon-ceramic
Mechanical Seal Type Single
Coupling N
Other Heat exchanger with thermal protection circuit Wrap around frame with fold out handles Loss of prime shutdown Pressure governor Vernier throttle
Impeller Material Bronze
Duty Continuous
Drain Yes
Port Rotation No
Country of Manufacture United States
Weight (Lbs) 225.000000
>
