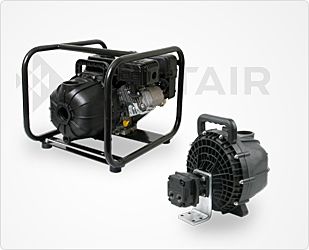

Poly Gas Engine Transfer Pump
-
Model Number:
1542P-65SP
-
Product Name:Poly Gas Engine Transfer Pump
-
Manufacturer:
-
Series (24 Models):
Pacer 1542P-65SP
PowerPro Gas Engine
Available in multiple horsepower options to suit a diverse range ofagricultural, industrial, and lawn & garden applications• Electric start option available for quick start-up• Dual element air filter provides highest degree of filtering• Cast iron cylinder sleeve for commercial use• Overhead valve for cleaner operation on most models; flat headon 2.5 HP• Equipped with a robust low-oil sensor to prevent engine damage• All engines are CARB/EPA certified• Engines can be configured to various Hypro pump models orpurchased individually• Supported with a one-year warranty from Hypro; repair partsavailable for easy servicing.
Polypropylene housing is suitable for corrosive environments• Powered by field-proven Hypro® PowerPro™ EPA engine• Self-priming capabilities with maximum suction lift up to25 feet/7.62 meters• Nylon impellers (1542P Series) and poly impellers with stainlesssteel inserts (1543P Series) can handle solid particles in suspensionup to 3/8” diameter• EPDM mechanical seal and inlet valve for longevity and reliabilityin most applications• Available in 2" and 3" models to fit common hose sizes• Achieve the highest performance available in a 3” poly transferpump with the highest efficiency and horsepower on the market.
| Model Number | 1542P-65SP |
|---|---|
| Series | PC Plastic Corrosion Resistant Pump To 230gpm |
| Max Flow (GPM.) | 150 |
| Max Flow GPH | 9000 |
| TDH Maximum (Ft) | 58 |
| Horse Power (HP) | 7 |
| Horsepower (IE .5, 1, 1.5, 20) | 6.5000 |
| Inlet Connection Type | FNPT |
| Inlet (In.) | 2 |
| Outlet (In.) | 2 |
| Wetted Materials | PolyPro |
| Elastomers / O-ring | EPDM |
| Motor Frequency | 60 |
| Motor | Gas Engine |
| Speed (RPM.) | 2850 |
| Self Priming | Yes |
| Max Operating Temperature (F) | 200 |
| Viscosity | Milk 3.20 cp 40.00 ssu |
| Mechanical Seal | No |
| Mechanical Seal Face | Carbon-ceramic |
| Mechanical Seal Type | Single |
| Drain | Yes |
| Port Rotation | Yes |
| Weight (Lbs) | 37.000000 |
