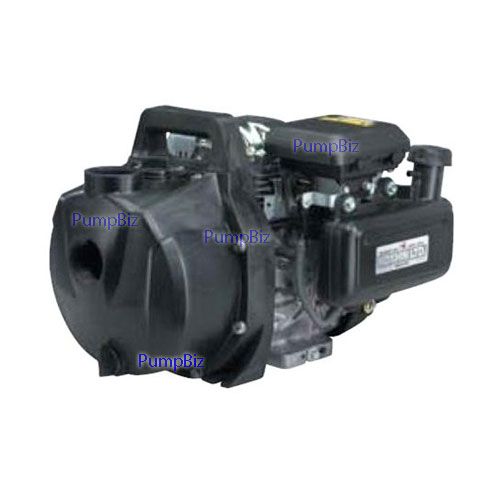

Plastic Engine drive pump
-
Model Number:
PGH-50
-
Product Name:Plastic Engine drive pump
-
Manufacturer:
-
Series (15 Models):
Koshin PGH-50
Plastic Engine drive pump
for dewatering, chemical transfer, Ag pesticides, seawater. Self Priming. Honda GX120 gas engine with low oil alert. Pump materials make it good for pumping DEF diesel exhaust fluid urea, and many common AG chemicals.
PET (Polyethylene Terephthalate) molded pump body is extra thick to endure the roughest of handling. PET plastic is resistant to most common chemicals.
| Model Number | PGH-50 |
|---|---|
| Series | Portable Water Pump Gas |
| Max Flow (GPM.) | 148 |
| Max Flow GPH | 8880 |
| TDH Maximum (Ft) | 85 |
| TDH Maximum (PSI) | 42 |
| Horse Power (HP) | 4 |
| Horsepower (IE .5, 1, 1.5, 20) | 4.0000 |
| Inlet Connection Type | FNPT |
| inlet size | 2in |
| Inlet (In.) | 2 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 2 |
| Wetted Materials | Polyethylene |
| Elastomers / O-ring | EPDM |
| Motor | Gas Engine |
| Speed (RPM.) | 3400 |
| Self Priming | Yes |
| Suction Lift (FT.) | 26 |
| Max Operating Temperature (F) | 120 |
| Viscosity | Vegetable Oil 34.60 cp 200.00 ssu |
| Shaft | Steel |
| Mechanical Seal | Yes |
| Mechanical Seal Face | Carbon-ceramic |
| Mechanical Seal Type | Single |
| Other | GC135 |
| Impeller Material | Plastic, semi-open |
| Drain | Yes |
| Port Rotation | No |
| Weight (Lbs) | 50.000000 |
| Engine Brand | Honda |
| Warranty (YRS.) | 1 |
| GPM Of Water At 40 Feet Of Head | 118 |
| GPM Of Water At 60 Feet Of Head | 90 |
| GPM Of Water At 80 Feet Of Head | 33 |
Koshin pumps are the standard and known world wide in the contractor, rental, and portable pump markets as the brand to use. Most portable water pumps by Koshin feature Honda gas engines. Koshin manufactures a complete line of self priming centrifugal pumps for general transfer, high pressure and trash debris filled liquids. These pumps come in gas or diesel engine and single phase electric submersibles. Koshin is the most copied pump design coming out of China, but do not think they are the same. Use only the best, the original Koshin.
For over 70 years Koshin has continued to invest in new product testing and development. Koshin totally redesigned its production facilities in 2013 adding in house aluminum die casting, production automation, and state of the art process flow management. With a core philosophy of customer satisfaction, Koshin insures that each product off of its production line is of the finest quality. This is why we can proudly say that the performance specification found in this catalog are guaranteed minimum. This is often not the case with our competitors, who inflate actual performance values.
To further insure our valued customers that Koshin stands by our produces, we offer a 3 year limited warranty against manufactured defects. Our pumps are used and loved in 160 all over the world.
Koshin… the world’s toughest pump.
