Packaged Sewage Ejector System
-
Model Number:
CMV1830
-
Product Name:Packaged Sewage Ejector System
-
Manufacturer:
-
Series (4 Models):
Model Number
CMV1830
$1,196.00
Myers CMV1830
Packaged Sewage Ejector System. ENGINEERED FOR MANY YEARS OF
MAINTENANCE-FREE OPERATION.
- Wide-angle, mercury-free mechanical float switch for maximum draw down.
- Recessed vortex impeller operates completely out of volute and provides free flow through passage for solids and liquids.
- UL, CSA, and SSPMA listed.
- Oil-filled motor for maximum heat dissipation and continuous bearing lubrication.
- Overload protected, shaded pole motor eliminates starting switches.
- Recessed vortex impeller provides minimal radial loading for long bearing life.
- Package Includes: CMV5-11 sewage pump with automatic switch , 18" x 30" poly basin, 18" plastic domed cover, CV-200P check valve, 2" PVC discharge pipe, and 4" inlet hub ADA compression type.

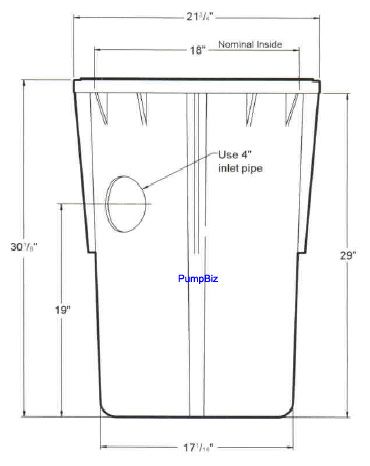

- Basin
- 18” x 30”, structural foam construction.
- 30 gallon capacity.
- 4” plastic slip-type or cast iron inlet hub.
- Sealed Cover
- 18” solid structural foam cover with 2” discharge flange, vent flange suitable for 2” or 3” vent, or split steel with 2” or 3” vent.
- Check Valve: 2" Full-swing
- Pump Down Range Float Switch: 9-10 in.
- Liquids Handling: drain water, effluent and sewage
- Motor: 1/2 hp shaded pole, 1625 rpm
- Note: All components shipped packed inside basin, not assembled.
| Model Number | CMV1830 |
|---|---|
| Series | Packaged Sewage Ejector Systems |
| Max Flow (GPM.) | 95 |
| Max Flow GPH | 5700 |
| TDH Maximum (Ft) | 19 |
| TDH Maximum (PSI) | 8 |
| Horse Power (HP) | 1/2 |
| Horsepower (IE .5, 1, 1.5, 20) | 0.5000 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 2 |
| Wetted Materials | CI-Plastic |
| Elastomers / O-ring | Buna-Nitrile |
| Voltage (V) | 115 |
| Voltage (Range) | 110-120 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 50 |
| Motor | Hermetically Sealed |
| Self Priming | Yes |
| Max Operating Temperature (F) | 140 |
| Viscosity | SAE 10 oil 88.00 cp 500.00 ssu |
| Mechanical Seal | No |
| Mechanical Seal Face | Carbon-ceramic |
| Mechanical Seal Type | Single |
| Other | All components shipped packed inside basin, not assembled. Speed: 1625 RPM |
| Drain | Yes |
| Port Rotation | Yes |
| Weight (Lbs) | 50.000000 |
