Oil Transfer Pump UP14/Oil
-
Model Number:
M164-520-12
-
Product Name:Oil Transfer Pump UP14/Oil
-
Manufacturer:
-
Series (2 Models):
4gpm 290GPH 12v
Model Number
M164-520-12
$489.00

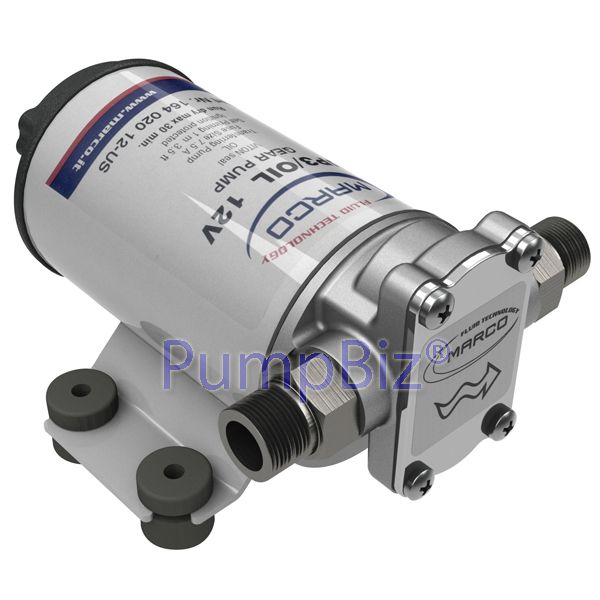

Marco Mate M164-520-12
Oil transfer gear pump, 12V DC.4.0 GPM Self-priming electric pump with helical bronze gears for transferring lubricating oils and viscous liquids. Nickel-plated brass body and stainless steel shaft. Particularly suitable for draining engine sumps with the special tubes kit (OK1) and for engines lubricating operations. Specifically designed to move oil or bio-diesel.ALLOWED: FRESH WATER ENGINE OIL, max viscosity 350 cSt, max 248 °F and DIESEL FUEL Min flashpoint (PM): 38°C-100°F
Oil Transfer and Bio-diesel Pump features:
- Helical bronze gears for long life and good priming.
- Nickel-plated brass body and stainless steel shaft for duribility.
- Self-priming to 6
- Fully compatible for B100 Bio-diesel
- Excellent bio-diesel fuel transfer and fuel polishing pump
| Model Number | M164-520-12 |
|---|---|
| Series | Gear Pumps |
| Max Flow (GPM.) | 5 |
| Max Flow GPH | 300 |
| Inlet Connection Type | MNPT |
| Inlet (In.) | .75 |
| Outlet Connection Type | MNPT |
| Outlet (In.) | .75 |
| Wetted Materials | 304SS, Bronze |
| Voltage (V) | 12DC |
| Voltage (Range) | 12/24/36 VDC |
| Motor Amps (A) | 14 |
| Self Priming | Yes |
| Max Operating Temperature (F) | 248F |
| Viscosity | SAE 30 oil 352.00 cp 2000.00 ssu |
| Mechanical Seal | Lip |
| Other | Flow rate based on 30wt oil. |
| Impeller Material | Bronze gears |
| Cord Length (Ft.) | 0 |
| Drain | No |
| Port Rotation | No |
| Country of Manufacture | Italy |
| Weight (Lbs) | 10.000000 |
>
